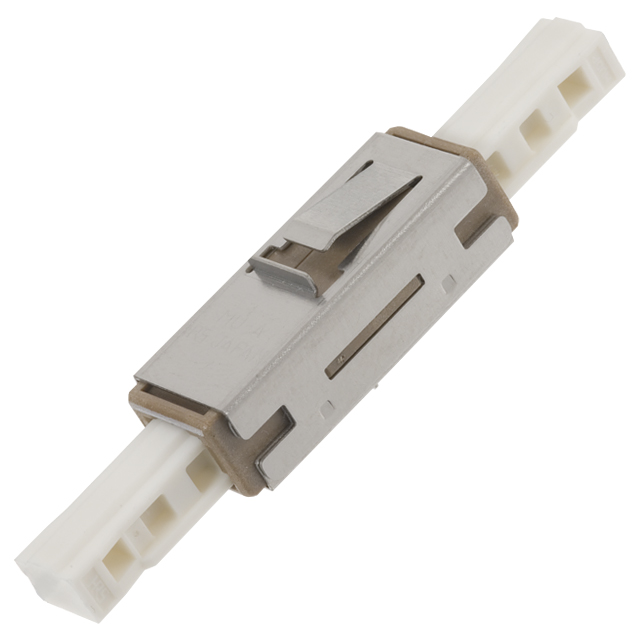

HMUA-A-3

Obsolete

Hirose Electric USA, Inc.

CONN COUPLER RCPT MU-MU SIMPLEX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HMUA-A-3

Obsolete

Hirose Electric USA, Inc.

CONN COUPLER RCPT MU-MU SIMPLEX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HMUA-A-3

Color	Silver
Convert From (Adapter End)	MU Receptacle
Convert To (Adapter End)	MU Receptacle
Ferrule Material	Zirconia
Housing Material	Synthetic Resin
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Simplex/Duplex	Simplex
Type	Coupler

HMUA Series

Part	Cable Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Simplex/Duplex	Material Flammability Rating	Boot Color	Fiber Core Diameter	Mounting Type	For Use With/Related Products	Features	Convert From (Adapter End)	Type	Ferrule Material	Convert To (Adapter End)	Housing Material	Color	Material	Specifications [x]	Specifications [x]	Accessory Type	Specifications
Hirose Electric USA, Inc. HMUA-P2-H2(60)	2 mm	70 °C	-25 °C	Plug	Simplex	UL94 V-0	Purple	9.5 µm 50 µm	Free Hanging (In-Line)	HMUA-F3 Ferrules	Strain Relief
Hirose Electric USA, Inc. HMUA-AS-3		70 °C	-25 °C		Simplex	UL94 V-0			Panel Mount Flange (2 Hole)			MU Receptacle	Coupler	Zirconia	MU Receptacle	Synthetic Resin
Hirose Electric USA, Inc. HMUA-A-3		70 °C	-25 °C		Simplex	UL94 V-0			Panel Mount Snap-In			MU Receptacle	Coupler	Zirconia	MU Receptacle	Synthetic Resin	Silver
Hirose Electric USA, Inc. HMUA-D		70 °C	-25 °C			UL94 V-0				HMUA Connectors							White	Zirconia	0.27 in	6.8 mm	Split Sleeve
Hirose Electric USA, Inc. HMUA-F3-A1255(10)		70 °C	-25 °C			UL94 V-0				MU Plugs							Silver				Ferrule	Multimode Singlemode
Hirose Electric USA, Inc. HMUA-F3-A125(10)		70 °C	-25 °C			UL94 V-0				MU Plugs							Silver				Ferrule	Multimode Singlemode
Hirose Electric USA, Inc. HMUA-P0.9-H1(60)	0.9 mm	70 °C	-25 °C	Plug	Simplex	UL94 V-0	Blue	9.5 µm 50 µm	Free Hanging (In-Line)	HMUA-F3 Ferrules	Strain Relief
Hirose Electric USA, Inc. HMUA-8AH-3(40)		70 °C	-25 °C		8-Plex	UL94 V-0			Board Mount			MU Receptacle	Coupler	Zirconia	MU Receptacle	Synthetic Resin
Hirose Electric USA, Inc. HMUA-P0.9-H2(60)	0.9 mm	70 °C	-25 °C	Plug	Simplex	UL94 V-0	Purple	9.5 µm 50 µm	Free Hanging (In-Line)	HMUA-F3 Ferrules	Strain Relief
Hirose Electric USA, Inc. HMUA-F3-A126(10)		70 °C	-25 °C			UL94 V-0				MU Plugs							Silver				Ferrule	Multimode Singlemode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HMUA Series

Coupler Fiber Optic Connector MU Receptacle To MU Receptacle Panel Mount, Snap-In
