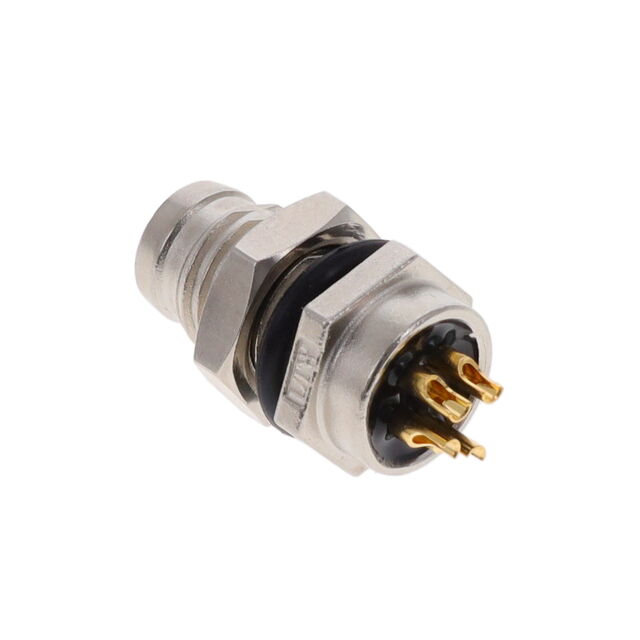

8-04PMMS-SF7001

Active

Amphenol LTW

M8 CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M8 CONN

Technical Specifications

Parameters and characteristics for this part

Specification	8-04PMMS-SF7001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-4
Shielding	Shielded

Part	Contact Finish - Mating	Ingress Protection	Shell Size - Insert	Color	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Current Rating (Amps)	Primary Material	Connector Type	Shell Finish	Material Flammability Rating	Orientation	Number of Positions	Shell Material	Shielding	Contact Material	Mounting Feature	Voltage Rating
Amphenol LTW 8-04PMMS-SF7001	Gold	IP67 - Dust Tight Waterproof	M8-4	Silver	-40 °C	105 ░C	Glass Filled Nylon 6/6 Polyamide (PA66)	3 A	Metal	Male Pins Receptacle	Nickel	UL94 V-0	Keyed	4	Zinc Alloy	Shielded	Copper Alloy	Bulkhead - Front Side Nut
Amphenol LTW 8-04PMMS-SH7002	Gold	IP67 - Dust Tight Waterproof	M8-4	Silver	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	3 A	Metal	Male Pins Receptacle	Nickel	UL94 V-0	Keyed	4	Zinc Alloy	Shielded	Copper Alloy	Bulkhead - Rear Side Nut	30 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
