Technical Specifications
Parameters and characteristics for this part
| Specification | OSP6U 0101000 |
|---|---|
| Cable Type | Multi-Pair, Cat6 |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Rip Cord, Water-Blocked |
| Jacket (Insulation) Diameter [diameter] | 0.251 in |
| Jacket (Insulation) Diameter [diameter] | 6.38 mm |
| Jacket (Insulation) Material | Polyolefin (PO) |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Usage | Ethernet |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.64 | |
Description
General part information
OSP6U Series

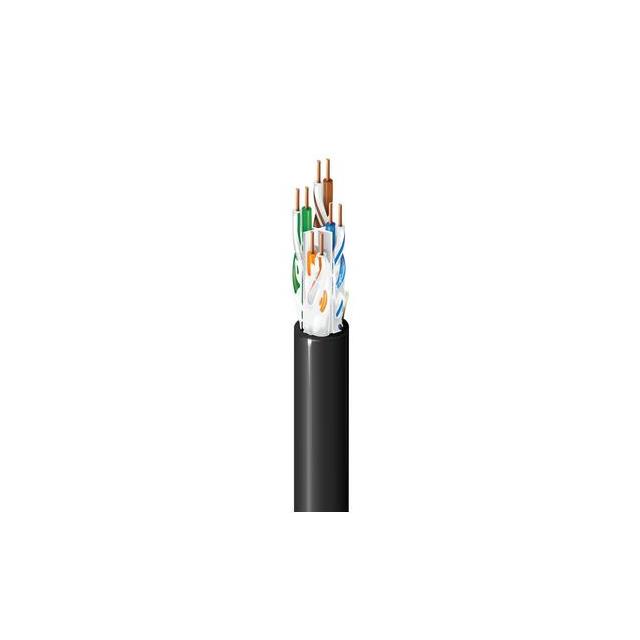

8 (4 Pair) Conductor Multi-Pair, Cat6 Cable Black 24 AWG 1000.0' (304.8m)
Documents
Technical documentation and resources
