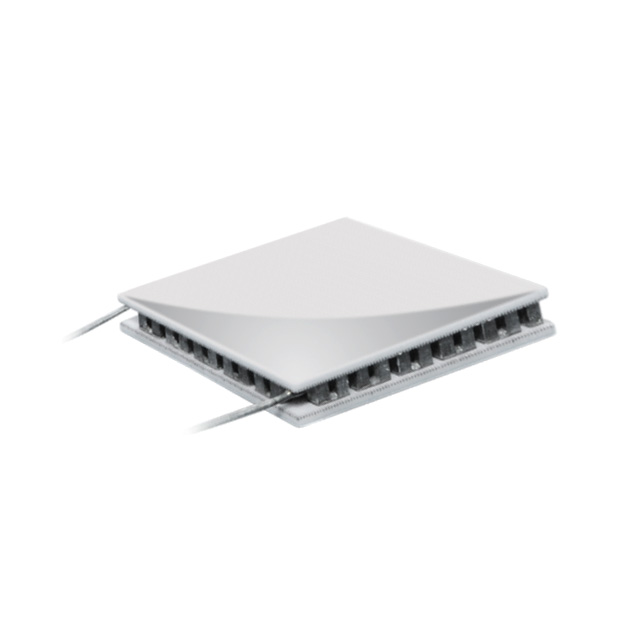

NL1023T-01AC

Active

Marlow Industries, Inc.

TEM 13.16X13.16X2.16MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 13.16X13.16X2.16MM

Technical Specifications

Parameters and characteristics for this part

Specification	NL1023T-01AC

Current - Max [Max]	1.8 A
Delta Tmax @ Th	64 °C
Features	Exterior Metallization (Both Sides), Lead Wires
Height [z]	2.16 mm
Number of Stages	1
Qmax @ Th	9.2 W
Resistance	3.86 Ohms
Size / Dimension [x]	13.16 mm
Size / Dimension [y]	13.16 mm
Voltage - Max [Max]	8 V

Part	Resistance	Height [z]	Voltage - Max [Max]	Delta Tmax @ Th	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Number of Stages	Qmax @ Th	Features
Marlow Industries, Inc. NL1023T-01AC	3.86 Ohms	2.16 mm	8 V	64 °C	1.8 A	13.16 mm	13.16 mm	1	9.2 W	Exterior Metallization (Both Sides) Lead Wires
Marlow Industries, Inc. NL1023T-03AC	3.86 Ohms	2.16 mm	8 V	64 °C	1.8 A	13.16 mm	13.16 mm	1	9.2 W	Lead Wires
Marlow Industries, Inc. NL1023T-02AC	3.86 Ohms	2.16 mm	8 V	64 °C	1.8 A	13.16 mm	13.16 mm	1	9.2 W	Exterior Metallization Lead Wires
Marlow Industries, Inc. NL1023T-04AC	3.86 Ohms	2.16 mm	8 V	64 °C	1.8 A	13.16 mm	13.16 mm	1	9.2 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 9.2W @ 27°C 1.8 A 85°C
