111-4190PBF
UnknownInfineon Technologies

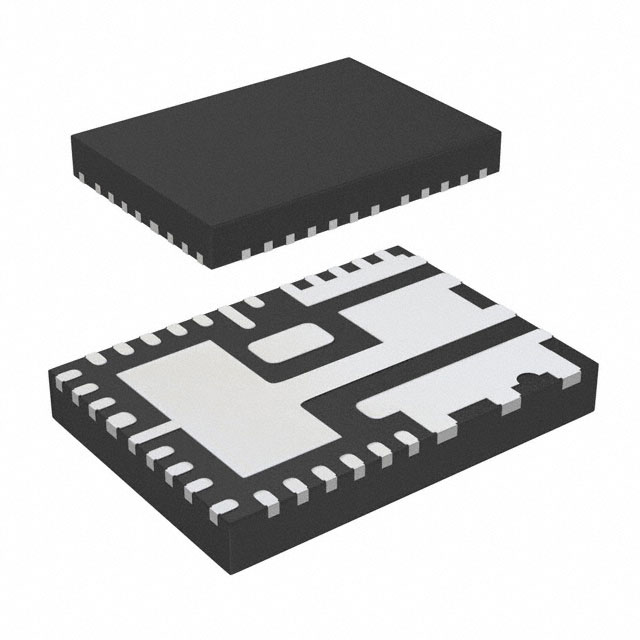

IC REG BUCK ADJ 25A 34QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
111-4190PBF
UnknownInfineon Technologies
IC REG BUCK ADJ 25A 34QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 111-4190PBF |
|---|---|
| Current - Output | 25 A |
| Frequency - Switching [Max] | 1.5 MHz |
| Frequency - Switching [Min] | 400 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 34-PowerVFQFN |
| Supplier Device Package | 34-PQFN (5x7) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 21 V |
| Voltage - Input (Min) [Min] | 1.2 V |
| Voltage - Output (Max) [Max] | 18.38 V |
| Voltage - Output (Min/Fixed) [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.14 | |
| 10 | $ 7.36 | |||
| 25 | $ 7.01 | |||
| 100 | $ 6.09 | |||
| Digi-Reel® | 1 | $ 8.14 | ||
| 10 | $ 7.36 | |||
| 25 | $ 7.01 | |||
| 100 | $ 6.09 | |||
| Tape & Reel (TR) | 250 | $ 5.82 | ||
| 500 | $ 5.30 | |||
| 1250 | $ 4.62 | |||
Description
General part information
111-4190 Series
Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 25A 34-PowerVFQFN
