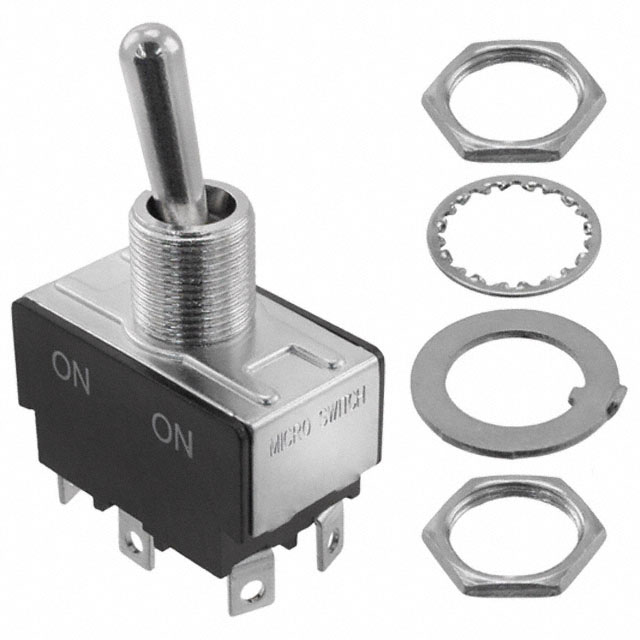

12TS115-3

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 20A 125V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	12TS115-3

Actuator Length [x]	16.51 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	20 A
Illumination	Non-Illuminated
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-54 °C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Material	Circuit	Illumination	Actuator Length [x]	Switch Function	Termination Style	Current Rating (Amps)	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]
Honeywell Sensing and Productivity Solutions 12TS115-3	Nickel Plated	DPDT	Non-Illuminated	16.51 mm	On-On	Solder Lug	20 A	15/32-32	-54 °C	71 °C	Standard Round	125 V	12.4 mm
Honeywell Sensing and Productivity Solutions 12TS115-2	Nickel Plated	DPST	Non-Illuminated	16.51 mm	On-Off	Solder Lug	20 A	15/32-32	-54 °C	71 °C	Standard Round	125 V	12.4 mm
Honeywell Sensing and Productivity Solutions 12TS15-3	Nickel Plated	DPDT	Non-Illuminated	16.51 mm	On-On	Screw Terminal	20 A	15/32-32	-54 °C	71 °C	Standard Round	125 V	12.4 mm
Honeywell Sensing and Productivity Solutions 12TS115-8	Nickel Plated	DPDT	Non-Illuminated	16.51 mm	On-Mom	Solder Lug	20 A	15/32-32	-54 °C	71 °C	Standard Round	125 V	12.4 mm
Honeywell Sensing and Productivity Solutions 12TS115-7	Nickel Plated	DPDT	Non-Illuminated	16.51 mm	Mom-Off-Mom	Solder Lug	20 A	15/32-32	-54 °C	71 °C	Standard Round	125 V	12.4 mm
Honeywell Sensing and Productivity Solutions 12TS15-2	Nickel Plated	DPST	Non-Illuminated	16.51 mm	On-Off	Screw Terminal	20 A	15/32-32	-54 °C	71 °C	Standard Round	125 V	12.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPDT Panel Mount
