ED300/3

Active

On Shore Technology Inc.

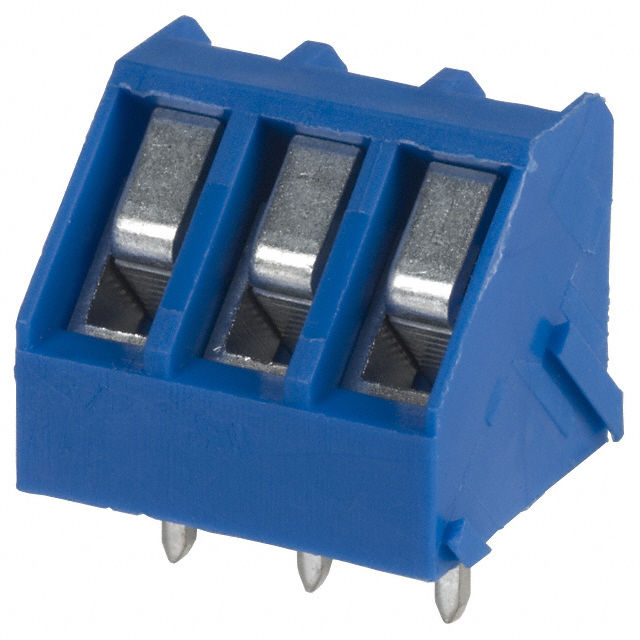

TERM BLOCK 3POS 45DEG 5MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLOCK 3POS 45DEG 5MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED300/3

Clamp Material - Plating	Copper
Color	Blue
Contact Material - Plating [custom]	Brass
Current	15 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	135 °
Mating Orientation	45 °
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Screw Thread	M2.6
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Features	Wire Termination	Positions Per Level	Mounting Type	Contact Material - Plating [custom]	Mating Orientation	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Color	Clamp Material - Plating	Current	Torque - Screw	Torque - Screw	Screw Thread	Number of Levels	Housing Material	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]
On Shore Technology Inc. ED300/3	Interlocking (Side)	Screw - Rising Cage Clamp	3	Through Hole	Brass	135 °	45 °	12 AWG	22 AWG	Blue	Copper	15 A	4.4 Lb-In	0.5 Nm	M2.6	1	Polyamide (PA) Nylon	300 V	-30 ░C	105 ░C	5 mm	0.197 in
On Shore Technology Inc. ED300/2BK	Interlocking (Side)	Screw - Rising Cage Clamp	2	Through Hole	Brass	135 °	45 °	12 AWG	22 AWG	Black	Copper	15 A	4.4 Lb-In	0.5 Nm	M2.6	1	Polyamide (PA) Nylon	300 V	-30 ░C	105 ░C	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
