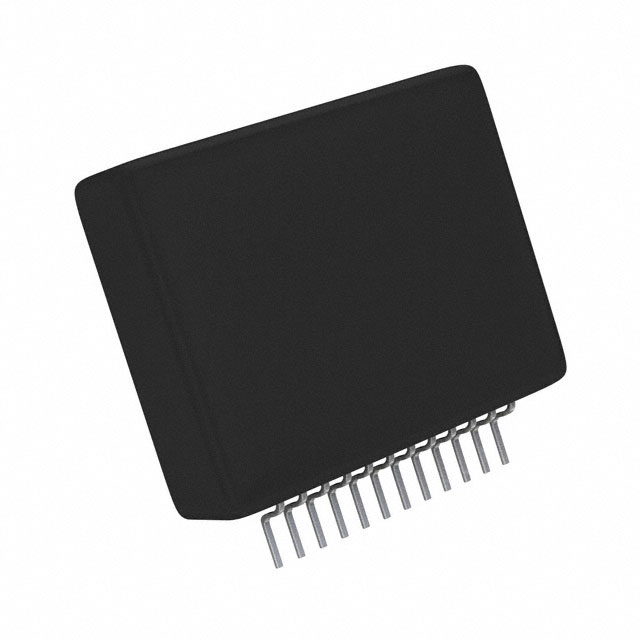

STK672-220-E

Obsolete

ON Semiconductor

IC MOTOR DRIVER UNIPOLAR 12SIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STK672-220-E

Applications	General Purpose
Current - Output	3 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Unipolar
Mounting Type	Through Hole
Operating Temperature	150 °C
Output Configuration	Half Bridge (2)
Package / Case	12-SIP Formed Leads
Step Resolution	1, 0.5
Supplier Device Package	12-SIP
Technology	Power MOSFET
Voltage - Load [Max]	45 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

STK672-740AN-E Series

Stepper Motor Driver Intelligent Power Module (IPM), Unipolar 2-Phase

Part	Motor Type - Stepper	Applications	Interface	Technology	Operating Temperature	Supplier Device Package	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Step Resolution	Mounting Type	Output Configuration	Current - Output	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Step Resolution
ON Semiconductor STK672-040-E	Unipolar	General Purpose	Parallel	Power MOSFET	150 °C	22-SIP	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	1 1/16 1/2 1/4 1/8	Through Hole	Half Bridge (2)	1.5 A	22-SIP	10 V	45 V
ON Semiconductor STK672-440B-E	Unipolar	General Purpose	Parallel	Power MOSFET			Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	1 1/16 1/2 1/4 1/8	Through Hole	Half Bridge (2)	3 A	19-SSIP Formed Leads	0 V	46 V	105 °C	-20 °C
ON Semiconductor STK672-060A-E	Unipolar	General Purpose	Parallel	Power MOSFET	150 °C		Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	1 1/16 1/2 1/4 1/8		Half Bridge (2)	1.2 A		10 V	45 V
ON Semiconductor STK672-440A-E	Unipolar	General Purpose	Parallel	Power MOSFET			Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	1 1/16 1/2 1/4 1/8	Through Hole	Half Bridge (2)	3 A	19-SSIP Formed Leads	10 V	42 V	105 °C	0 °C
ON Semiconductor STK672-432A-E	Unipolar	General Purpose	Parallel	Power MOSFET			Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	1 1/16 1/2 1/4 1/8	Through Hole	Half Bridge (2)	2 A	19-SSIP Formed Leads	10 V	42 V	105 °C	0 °C
ON Semiconductor STK672-732B-E	Unipolar	General Purpose	Parallel	Power MOSFET		19-SIP	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V		Through Hole	Half Bridge (2)	2.2 A	19-SSIP Formed Leads	0 V	46 V	105 °C	-20 °C	0.5 1
ON Semiconductor STK672-442AN-E	Unipolar	General Purpose	Parallel	Power MOSFET		19-SIP	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	1 1/16 1/2 1/4 1/8	Through Hole	Half Bridge (2)	3 A	19-SSIP Formed Leads	0 V	42 V	105 °C	0 °C
ON Semiconductor STK672-070-E	Unipolar	General Purpose	Parallel	Power MOSFET	150 °C	15-SIP	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	1 1/16 1/2 1/4 1/8	Through Hole	Half Bridge (2)	1.7 A	15-SIP Formed Leads	10 V	45 V
ON Semiconductor STK672-440BN-E	Unipolar	General Purpose	Parallel	Power MOSFET		19-SIP	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	1 1/16 1/2 1/4 1/8	Through Hole	Half Bridge (2)	3 A	19-SSIP Formed Leads	0 V	46 V	105 °C	0 °C
ON Semiconductor STK672-220-E	Unipolar	General Purpose	Parallel	Power MOSFET	150 °C	12-SIP	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V		Through Hole	Half Bridge (2)	3 A	12-SIP Formed Leads	10 V	45 V			0.5 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STK672-740AN-E Series

The STK672-440BN-E is a hybrid IC for use a unipolar, 2-phase stepper motor driver with PWM current control. It includes a built-in microstepping controller and is based on a unipolar constant-current PWM system. The STK672-440BN-E supports application simplification and standardization by providing a built-in 4 phase distribution stepper motor controller. It supports five excitation methods: 2 phase, 1-2 phase, W1-2 phase, 2W1-2 phase, and 4W1-2 phase excitations, and can provide control of the basic stepping angle of the stepper motor divided into 1/16 step units. It also allows the motor speed to be controlled with only a clock signal. The use of this hybrid IC allows designers to implement systems that provide high motor torques, low vibration levels, low noise, fast response, and high-efficiency drive. In addition the STK672-440BN-E has various protective function against over-current, over-heat, and motor terminal open. And small package type STK672-442BN-E without hole to attach a heat-sink is lined up.
