C0784A.41.10

Active

Prysmian Group

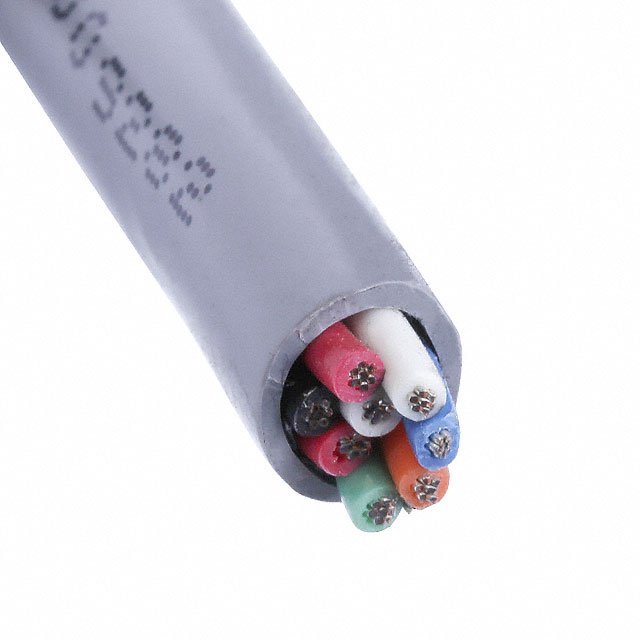

CABLE 8COND 20AWG GRAY SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 8COND 20AWG GRAY SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C0784A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	7.54 mm
Jacket (Insulation) Diameter [diameter]	0.297 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	20 AWG

Part	Wire Gauge	Features	Length	Length	Jacket (Insulation) Material	Usage	Shield Coverage	Conductor Insulation	Conductor Material	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Number of Conductors	Shield Material	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage
Prysmian Group C0784A.41.10	20 AWG	Drain Wire	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Computer	100 %	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	500 '	152.4 m	28	7	Gray	ASTM B-33	7.54 mm	0.297 "	Foil	8	Flexfoil®	Multi-Conductor	-20 C	80 C	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Gray 20 AWG Foil 1000.0' (304.8m)
