LR2F220K

Active

TE Connectivity Passive Product

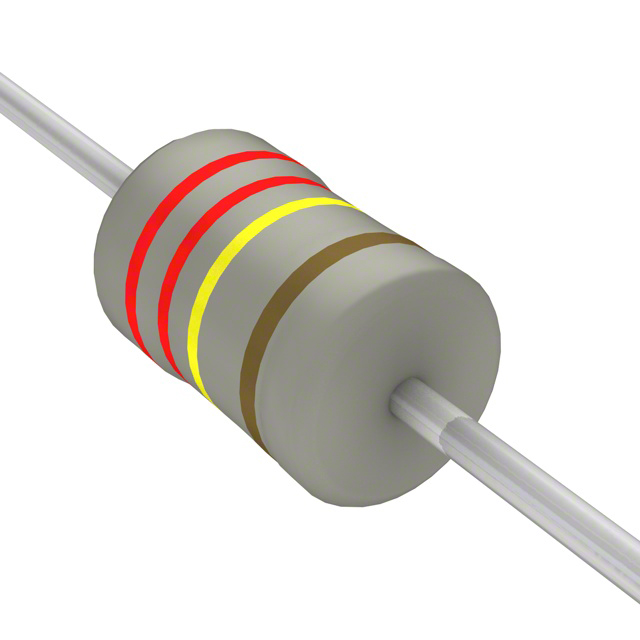

RES 220K OHM 1% 3/4W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1622712

LR2F220K

Active

TE Connectivity Passive Product

RES 220K OHM 1% 3/4W AXIAL

Deep-Dive with AI

DocumentsDatasheet 1622712

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LR2F220K

Composition	Metal Film
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.75 W
Power (Watts)	0.75 W
Resistance	220 kOhms
Size / Dimension [diameter]	0.138 in
Size / Dimension [diameter]	3.5 mm
Size / Dimension [z]	0.382 "
Size / Dimension [z]	9.7 mm
Supplier Device Package	Axial
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

LR2F Series

Part	Package / Case	Power (Watts)	Power (Watts)	Resistance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Tolerance	Composition	Number of Terminations	Temperature Coefficient	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Passive Product LR2F1K1	Axial	0.75 W	0.75 W	1100 Ohms	0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C
TE Connectivity Passive Product LR2F390K	Axial	0.75 W	0.75 W	390 kOhms	0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C
TE Connectivity Passive Product LR2F360K	Axial	0.75 W	0.75 W	360 kOhms	0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C
TE Connectivity Passive Product LR2F220K	Axial	0.75 W	0.75 W	220 kOhms	0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C
TE Connectivity Passive Product LR2F24R	Axial	0.75 W	0.75 W	24 Ohms	0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C
TE Connectivity Passive Product LR2F6K8	Axial	0.75 W	0.75 W	6.8 kOhms	0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C
TE Connectivity Passive Product LR2F6K2	Axial	0.75 W	0.75 W	6.2 kOhms	0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C
TE Connectivity Passive Product LR2F1K5	Axial	0.75 W	0.75 W	1500 Ohms	0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C
TE Connectivity Passive Product LR2F43R	Axial	0.75 W	0.75 W	43 Ohms	0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C
TE Connectivity Passive Product LR2F30K	Axial	0.75 W	0.75 W		0.138 in	3.5 mm	0.382 "	9.7 mm	1 %	Metal Film	2	100 ppm/°C	Axial	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	4000	$ 0.05

Description

General part information

LR2F Series

220 kOhms ±1% 0.75W, 3/4W Through Hole Resistor Axial Metal Film

Documents

Technical documentation and resources

Datasheet

1622712

Datasheet
