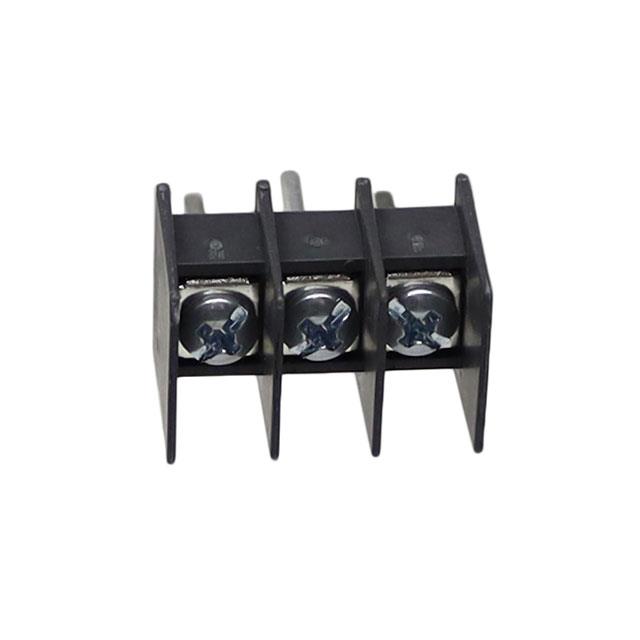

325120-03-0

Active

Curtis Industries

CONN BARRIER STRIP 3CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

325120-03-0

Active

Curtis Industries

CONN BARRIER STRIP 3CIRC 0.325"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325120-03-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Wire Wrap
Current Rating (Amps)	15 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	3
Number of Rows	1
Number of Wire Entries	3
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325120 Series

Part	Operating Temperature	Mounting Type	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Terminal Screw Material	Number of Wire Entries	Barrier Type	Voltage Rating	Top Termination	Material Flammability Rating	Terminal Block Type	Material - Insulation	Bottom Termination	Number of Rows	Current Rating (Amps)	Number of Wire Entries [custom]
Curtis Industries 325120-20-0	105 C	Through Hole	8.26 mm	0.325 in	14 AWG	22 AWG	20	Steel	20	2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A
Curtis Industries 325120-03-0	105 C	Through Hole	8.26 mm	0.325 in	14 AWG	22 AWG	3	Steel	3	2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A
Curtis Industries 325120-09-0	105 C	Through Hole	8.26 mm	0.325 in	14 AWG	22 AWG		Steel	9	2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A
Curtis Industries 325120-14-0	105 C	Through Hole	8.26 mm	0.325 in	14 AWG	22 AWG	14	Steel	14	2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A
Curtis Industries 325120-17-0	105 C	Through Hole	8.26 mm	0.325 in	14 AWG	22 AWG	17	Steel	17	2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A
Curtis Industries 325120-16-0	105 C	Through Hole	8.26 mm	0.325 in	14 AWG	22 AWG	16	Steel	16	2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A
Curtis Industries 325120-18-0	105 C	Through Hole	8.26 mm	0.325 in	14 AWG	22 AWG	18	Steel	18	2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A
Curtis Industries 325120-02-0	105 C	Through Hole	8.26 mm	0.325 in	14 AWG	22 AWG	2	Steel	2	2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A
Curtis Industries 325120-21-0	105 C	Through Hole	8.26 mm	0.325 in	14 AWG	22 AWG	21	Steel	21	2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A
Curtis Industries 325120-01-0	105 C	Through Hole			14 AWG	22 AWG	1	Steel		2 Wall (Dual)	300 VDC	Screws	UL94 V-0	Barrier Block	Polypropylene (PP)	Wire Wrap	1	15 A	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.08
		10	$ 1.58
		30	$ 1.48
		50	$ 1.32
		100	$ 1.29
		250	$ 1.26

Description

General part information

325120 Series

3 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
