Finder Relays, Inc.

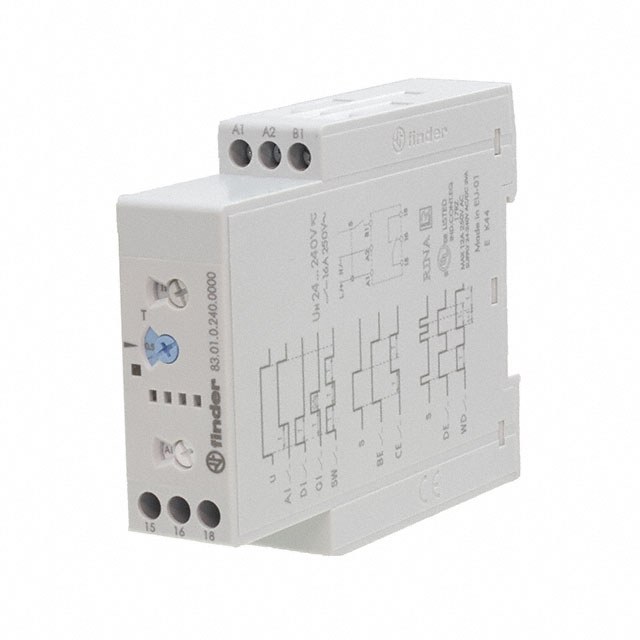

RELAY TIME DELAY 240HR 16A 250V

Search across all available documentation for this part.

Active

Finder Relays, Inc.

RELAY TIME DELAY 240HR 16A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	83.01.0.240.0000

Contact Rating @ Voltage	250 VAC, 16 A
Delay Time [Max]	10 Days
Delay Time [Min]	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Delay Time [Min]	Delay Time [Max]	Contact Rating @ Voltage	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Adjustment Method	Timing Initiate Method	Mounting Type	Function	Relay Type	Termination Style
Finder Relays, Inc. 83.01.0.240.0000	0.05 Sec	10 Days	16 A 250 VAC	24 VAC	240 VAC	Screwdriver Slot	Input Voltage	DIN Rail	Programmable (Multi-Function)	Mechanical Relay	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 240 Hrs Delay 16A @ 250VAC DIN Rail
