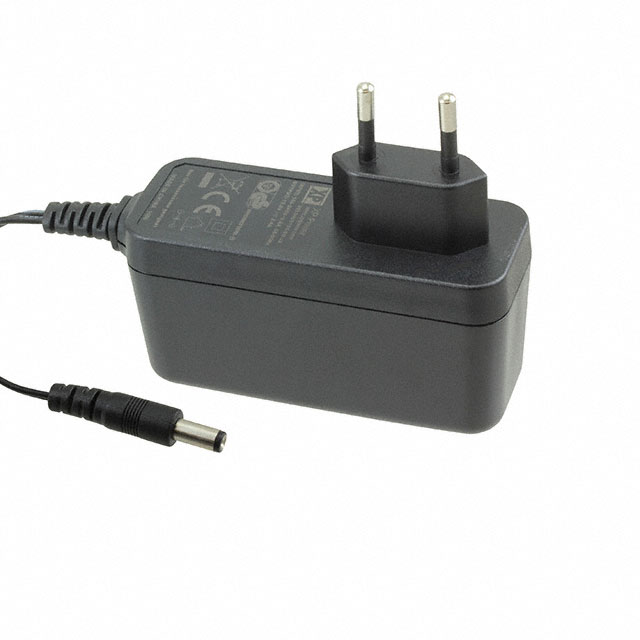

VEL36US150-EU-JA

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 15V 36W

Search across all available documentation for this part.

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 15V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	VEL36US150-EU-JA

Applications	ITE (Commercial)
Approval Agency	CB, CCC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2.4 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [z]	12 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	Europe
Size / Dimension [x]	3.7 in
Size / Dimension [x]	94 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.38 "
Size / Dimension [z]	46.6 mm
Size / Dimension [z]	1.83 in
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC
Weight	155.13 g
Weight	0.342 lb

Part	Operating Temperature [Max]	Cord Length	Cord Length	Voltage - Output	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Power (Watts)	Efficiency	Current - Output (Max) [Max]	Weight	Weight	Output Connector	Output Connector [diameter]	Output Connector [z]	Form	Standard Number	Polarization	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Region Utilized	Input Connector	Applications	Approval Agency
XP POWER VEL36US150-EU-JA	60 °C	1.5 m	59 in	15 VDC	Fixed Blade	90 VAC	264 VAC	75 mW	36 W	CoC Tier 2 Level VI	2.4 A	155.13 g	0.342 lb	Barrel Plug	2.1 mm 5.5 mm	12 mm	Wall Mount (Class II)	62368-1	Positive Center	3.7 in	35 mm	94 mm	46.6 mm	1.38 "	1.83 in	Europe	CEE 7/16	ITE (Commercial)	CB CCC
XP POWER VEL36US150-UK-JA	60 °C	1.5 m	59 in	15 VDC	Fixed Blade	90 VAC	264 VAC	75 mW	36 W	CoC Tier 2 Level VI	2.4 A	146.96 g	0.324 lb	Barrel Plug	2.1 mm 5.5 mm	12 mm	Wall Mount (Class II)	62368-1	Positive Center	3.7 in	35 mm	94 mm	46.6 mm	1.38 "	1.83 in	United Kingdom	GB 1002	ITE (Commercial)	CB CCC
XP POWER VEL36US150-US-JA	60 °C	1.5 m	59 in	15 VDC	Fixed Blade	90 VAC	264 VAC	75 mW	36 W	CoC Tier 2 Level VI	2.4 A	155.13 g	0.342 lb	Barrel Plug	2.1 mm 5.5 mm	12 mm	Wall Mount (Class II)	62368-1	Positive Center							North America	NEMA 1-15P	ITE (Commercial)	CB CCC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.91

General part information

15V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
