XP0221100L

Obsolete

Panasonic Industrial Automation Sales

TRANS 2NPN PREBIAS 0.15W SMINI5

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS 2NPN PREBIAS 0.15W SMINI5

Technical Specifications

Parameters and characteristics for this part

Specification	XP0221100L

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	35
Frequency - Transition	150 MHz
Mounting Type	Surface Mount

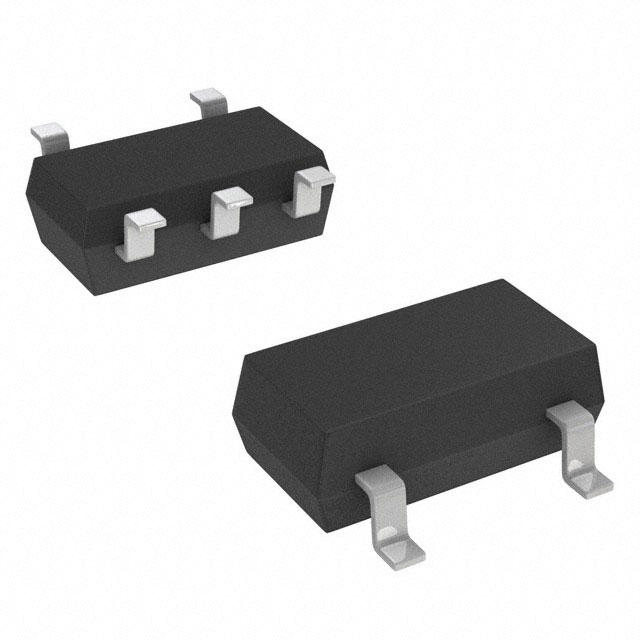

Package / Case	SC-70-5, 5-TSSOP, SOT-353
Resistor - Emitter Base (R2)	10 kOhms
Supplier Device Package	SMini5-G1
Transistor Type	2 NPN - Pre-Biased (Dual)
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Transistor Type	Resistor - Emitter Base (R2)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Mounting Type	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Current - Collector Cutoff (Max) [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic
Panasonic Industrial Automation Sales XP0221100L	2 NPN - Pre-Biased (Dual)	10 kOhms	35	SMini5-G1	Surface Mount	100 mA	150 MHz	500 nA	5-TSSOP SC-70-5 SOT-353	50 V	250 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA 150MHz 150mW Surface Mount SMini5-G1
