FX11B-100S-SV

Active

Hirose Electric USA, Inc.

CONN RCPT 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FX11 Series

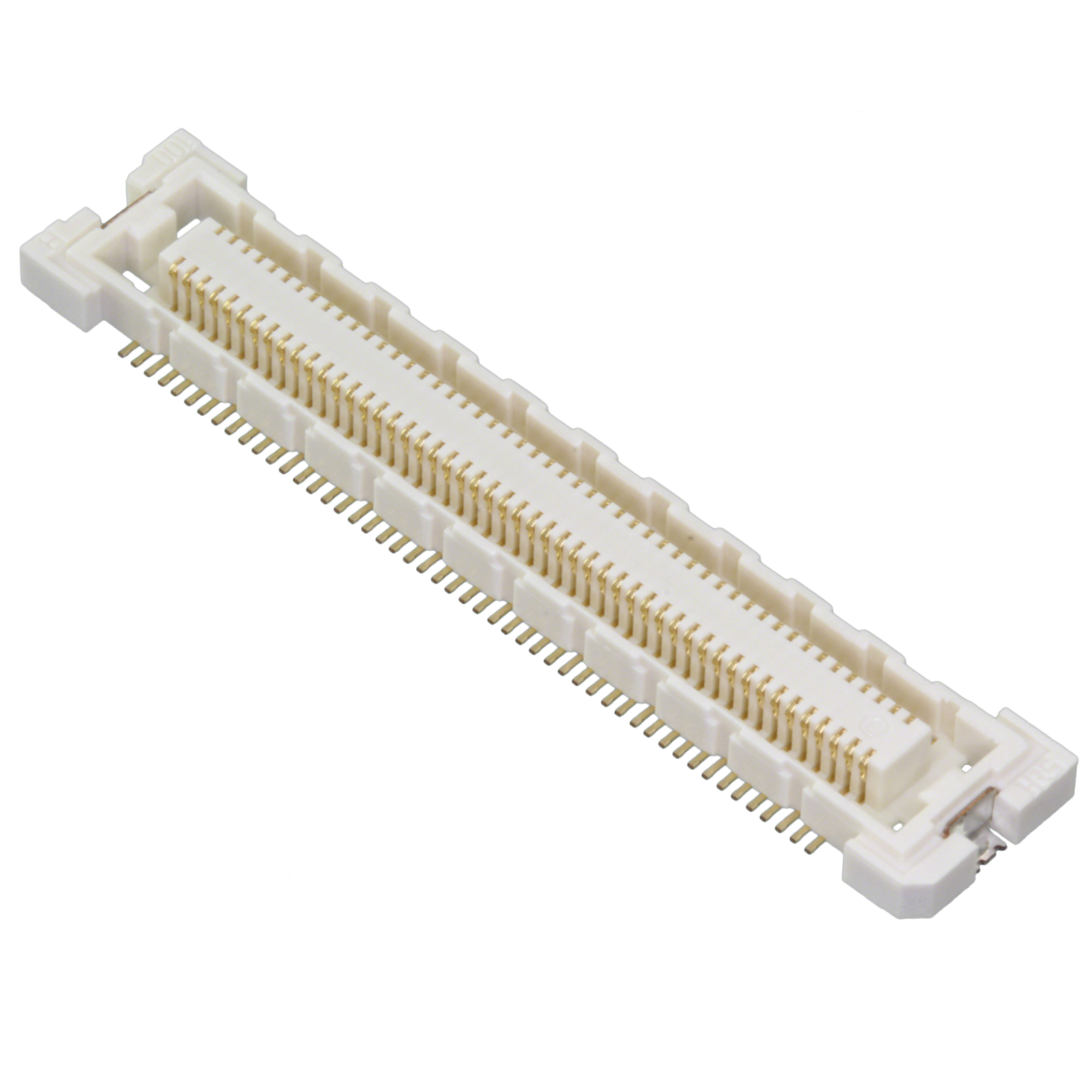

FX11B-100S-SV

Active

Hirose Electric USA, Inc.

CONN RCPT 100POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet FX11 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX11B-100S-SV

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board	2.1 mm
Height Above Board	0.083 "
Mated Stacking Heights [z]	3 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX11B Series

Part	Contact Finish	Connector Type	Number of Positions	Mounting Type	Mated Stacking Heights	Features	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights [z]	Height Above Board	Height Above Board
Hirose Electric USA, Inc. FX11B-100P/10-SV0.5(92)	Gold	Header Outer Shroud Contacts	100	Surface Mount	3 mm	Ground Plate Solder Retention	0.5 mm	0.02 in	2.63 mm	0.103 "	2	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX11B-60P/6-SV0.5(71)	Gold	Header Outer Shroud Contacts	60	Surface Mount	3 mm	Ground Plate Solder Retention	0.5 mm	0.02 in	2.63 mm	0.103 "	2	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX11B-60S/6-SV(92)	Gold	Center Strip Contacts Receptacle	60	Surface Mount		Ground Plate Solder Retention	0.5 mm	0.02 in			2	4 Áin	0.1 Ám	2.5 mm 3 mm	2.1 mm	0.083 "
Hirose Electric USA, Inc. FX11B-80P-SV0.5(22)	Gold	Header Outer Shroud Contacts	80	Surface Mount	3 mm	Solder Retention	0.5 mm	0.02 in	2.63 mm	0.103 "	2	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX11B-80P-SV(22)	Gold	Header Outer Shroud Contacts	80	Surface Mount	2.5 mm	Solder Retention	0.5 mm	0.02 in			2	4 Áin	0.1 Ám		2.13 mm	0.084 in
Hirose Electric USA, Inc. FX11B-100S-SV	Gold	Center Strip Contacts Receptacle	100	Surface Mount		Solder Retention	0.5 mm	0.02 in			2	4 Áin	0.1 Ám	2.5 mm 3 mm	2.1 mm	0.083 "
Hirose Electric USA, Inc. FX11B-100P/10-SV(91)	Gold	Header Outer Shroud Contacts	100	Surface Mount	2.5 mm	Ground Plate Solder Retention	0.5 mm	0.02 in			2	4 Áin	0.1 Ám		2.13 mm	0.084 in
Hirose Electric USA, Inc. FX11B-100P-SV0.5(21)	Gold	Header Outer Shroud Contacts	100	Surface Mount	3 mm	Solder Retention	0.5 mm	0.02 in	2.63 mm	0.103 "	2	4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX11B-80S-SV(21)	Gold	Center Strip Contacts Receptacle	80	Surface Mount		Solder Retention	0.5 mm	0.02 in			2	4 Áin	0.1 Ám	2.5 mm 3 mm	2.1 mm	0.083 "
Hirose Electric USA, Inc. FX11B-80S/8-SV(92)	Gold	Center Strip Contacts Receptacle	80	Surface Mount		Ground Plate Solder Retention	0.5 mm	0.02 in			2	4 Áin	0.1 Ám	2.5 mm 3 mm	2.1 mm	0.083 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.65
		10	$ 4.33
		25	$ 3.90
		40	$ 3.71
		80	$ 3.44
		230	$ 3.07
		440	$ 2.87
		945	$ 2.66
		2400	$ 2.44

Description

General part information

FX11B Series

100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

FX11 Series

Datasheet
