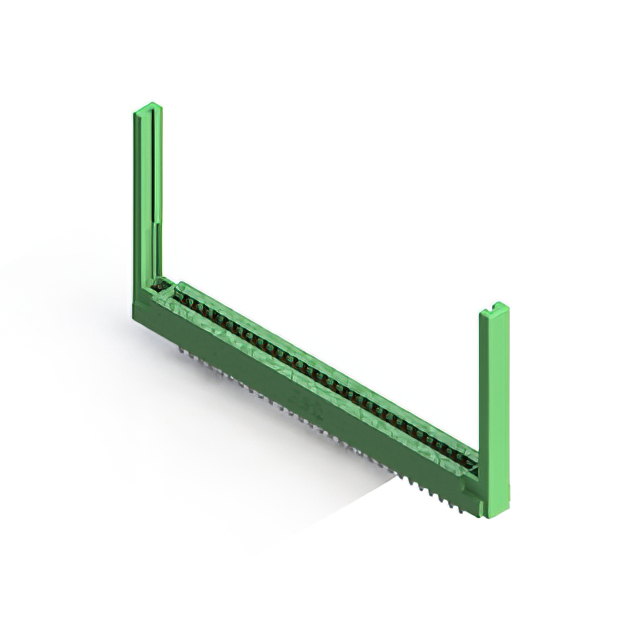

306-029-500-168

Active

EDAC Inc.

CONN EDGE DUAL FMALE 58POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

306-029-500-168

Active

EDAC Inc.

CONN EDGE DUAL FMALE 58POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-029-500-168

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

306-029 Series

Part	Gender	Contact Type	Termination	Read Out	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Number of Positions	Card Type	Color	Mounting Type	Contact Material	Contact Finish	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 306-029-420-101	Female	Cantilever	Solder	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green	Through Hole	Copper Alloy	Tin	1
EDAC Inc. 306-029-500-103	Female	Cantilever	Solder Eyelet(s)	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green		Copper Alloy	Gold	1	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 306-029-521-178	Female	Cantilever	Solder	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green	Panel Mount Through Hole	Copper Alloy	Gold	1	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 306-029-520-104	Female	Cantilever	Solder	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green	Panel Mount Through Hole	Copper Alloy	Gold	1	10 Áin	0.25 Ám	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 306-029-500-104	Female	Cantilever	Solder Eyelet(s)	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green		Copper Alloy	Gold	1	10 Áin	0.25 Ám	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 306-029-400-178	Female	Cantilever	Solder Eyelet(s)	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green		Copper Alloy	Tin	1				4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 306-029-500-168	Female	Cantilever	Solder Eyelet(s)	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green		Copper Alloy	Gold	1	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 306-029-521-101	Female	Cantilever	Solder	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green	Through Hole	Copper Alloy	Gold	1	10 Áin	0.25 Ám
EDAC Inc. 306-029-500-158	Female	Cantilever	Solder Eyelet(s)	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green		Copper Alloy	Gold	1	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 306-029-520-168	Female	Cantilever	Solder	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	29	0.156 in	3.96 mm	-40 °C	105 ░C	Polyester Thermoplastic	58	Non Specified - Dual Edge	Green	Panel Mount Through Hole	Copper Alloy	Gold	1	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.16

Description

General part information

306-029 Series

58 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
