6382-3PG-516

Active

Conxall/Switchcraft

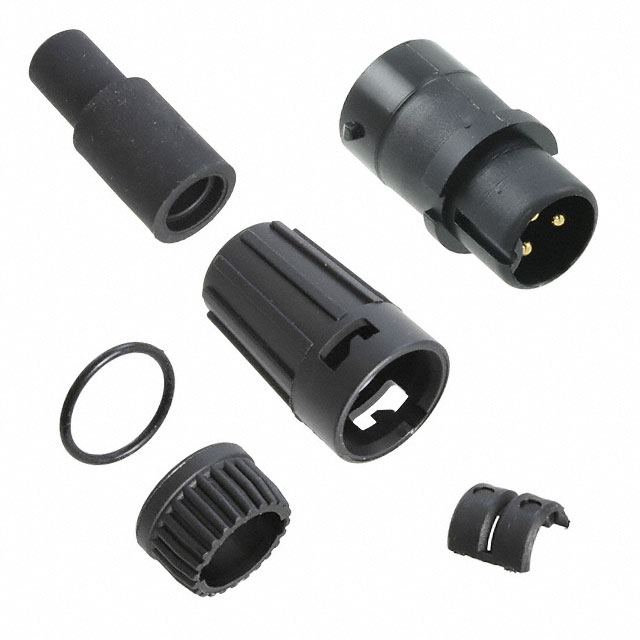

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6382-3PG-516

Active

Conxall/Switchcraft

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6382-3PG-516

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	0.18 in
Cable Opening [Max] [custom]	4.57 mm
Cable Opening [Min] [custom]	0.16 in
Cable Opening [Min] [custom]	4.06 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

6382-3PG Series

Part	Shielding	Contact Finish - Mating	Orientation	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material	Fastening Type	Color	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Features	Current Rating (Amps)	Connector Type	Backshell Material, Plating	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 6382-3PG-311	Unshielded	Gold	Keyed	Brass	2.29 mm	0.09 in 0.14 in	3.56 mm	Plastic	Bayonet Lock	Black	Automotive Communication Systems Instrumentation	-40 °C	115 °C	600 V	Free Hanging (In-Line)	Backshell	Varies by Wire Gauge	Male Pins Plug	Nylon Polyamide (PA)	Weathertight
Conxall/Switchcraft 6382-3PG-516	Unshielded	Gold	Keyed	Brass				Plastic	Bayonet Lock	Black	Automotive Communication Systems Instrumentation	-40 °C	115 °C	600 V	Free Hanging (In-Line)	Backshell	Varies by Wire Gauge	Male Pins Plug	Nylon Polyamide (PA)	Weathertight	0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 6382-3PG-513	Unshielded	Gold	Keyed	Brass				Plastic	Bayonet Lock	Black	Automotive Communication Systems Instrumentation	-40 °C	115 °C	600 V	Free Hanging (In-Line)	Backshell	Varies by Wire Gauge	Male Pins Plug	Nylon Polyamide (PA)	Weathertight					0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 6382-3PG-318	Unshielded	Gold	Keyed	Brass				Plastic	Bayonet Lock	Black	Automotive Communication Systems Instrumentation	-40 °C	115 °C	600 V	Free Hanging (In-Line)	Backshell	Varies by Wire Gauge	Male Pins Plug	Nylon Polyamide (PA)	Weathertight	0.18 in	0.2 in	4.57 mm	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.33
		10	$ 9.63
		25	$ 9.03
		50	$ 8.60
		100	$ 8.19
		300	$ 7.58
		500	$ 7.31
		1000	$ 6.96

Description

General part information

6382-3PG Series

3 Position Circular Connector Plug, Male Pins Solder Cup
