XLH536020.000JS4I8

Active

Renesas Electronics Corporation

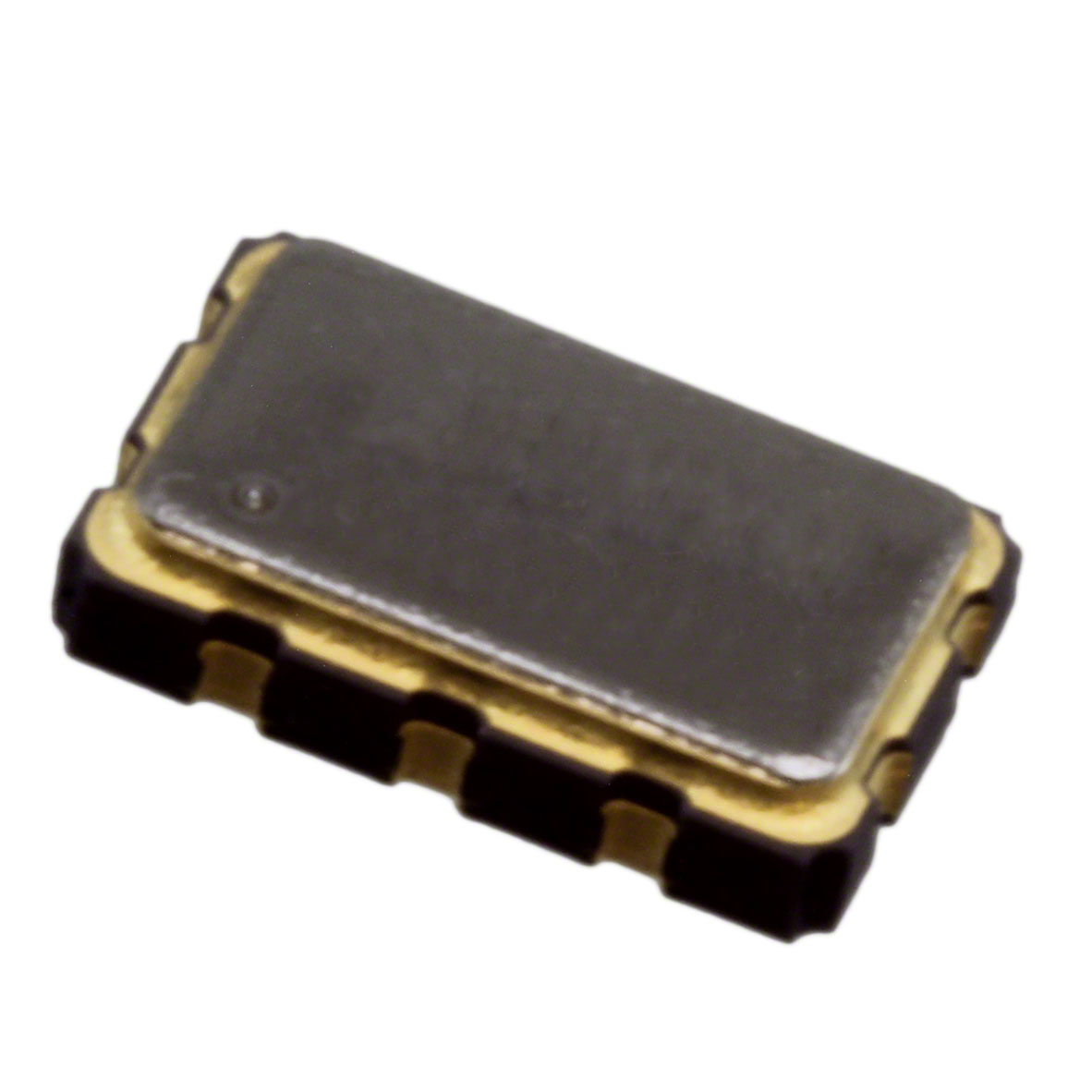

XTAL OSC XO 20.0000MHZ HCMOS SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHigh-Performance Clock Oscillator Family Overview Datasheet

XLH536020.000JS4I8

Active

Renesas Electronics Corporation

XTAL OSC XO 20.0000MHZ HCMOS SMD

Deep-Dive with AI

DocumentsHigh-Performance Clock Oscillator Family Overview Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XLH536020.000JS4I8

Base Resonator	Crystal
Current - Supply (Max) [Max]	55 mA
Frequency	20 MHz
Frequency Stability	25 ppm
Function	Enable/Disable
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	HCMOS
Package / Case	6-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	XO (Standard)
Voltage - Supply	3.3 V

XLH536 Series

...

Part	Function	Output	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Supply (Max) [Max]	Voltage - Supply	Frequency Stability	Base Resonator	Package / Case	Type
Renesas Electronics Corporation XLH536059.300000I	Enable/Disable	HCMOS	Surface Mount	85 °C	-40 °C	59.3 MHz	0.197 in	0.126 "	3.2 mm	5 mm	1.2 mm	0.047 in	47 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)
Renesas Electronics Corporation XLH536111.111000X	Enable/Disable	HCMOS	Surface Mount	70 °C	-20 C	111.111 MHz	0.203 in	0.132 in	3.35 mm	5.15 mm	1.4 mm	0.055 in	47 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)
Renesas Electronics Corporation XLH536024.000000I	Enable/Disable	HCMOS	Surface Mount	85 °C	-40 °C	24 MHz	0.203 in	0.132 in	3.35 mm	5.15 mm	1.4 mm	0.055 in	35 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)
Renesas Electronics Corporation XLH536001.250000I	Enable/Disable	HCMOS	Surface Mount	85 °C	-40 °C		0.203 in	0.132 in	3.35 mm	5.15 mm	1.4 mm	0.055 in	32 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)
Renesas Electronics Corporation XLH536002.000000I	Enable/Disable	HCMOS	Surface Mount	85 °C	-40 °C	2 MHz	0.197 in	0.126 "	3.2 mm	5 mm	1.2 mm	0.047 in	32 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)
Renesas Electronics Corporation XLH536168.960000I	Enable/Disable	HCMOS	Surface Mount	85 °C	-40 °C	168.96 MHz	0.203 in	0.132 in	3.35 mm	5.15 mm	1.4 mm	0.055 in	55 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)
Renesas Electronics Corporation XLH536006.000000I	Enable/Disable	HCMOS	Surface Mount	85 °C	-40 °C	6 MHz	0.203 in	0.132 in	3.35 mm	5.15 mm	1.4 mm	0.055 in	32 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)
Renesas Electronics Corporation XLH536081.982492I	Enable/Disable	HCMOS	Surface Mount	85 °C	-40 °C	81.982492 MHz	0.203 in	0.132 in	3.35 mm	5.15 mm	1.4 mm	0.055 in	47 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)
Renesas Electronics Corporation XLH536020.000JS4I8	Enable/Disable	HCMOS	Surface Mount	85 °C	-40 °C	20 MHz	0.197 in	0.126 "	3.2 mm	5 mm	1.2 mm	0.047 in	55 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)
Renesas Electronics Corporation XLH536009.830400I	Enable/Disable	HCMOS	Surface Mount	85 °C	-40 °C	9.8304 MHz	0.197 in	0.126 "	3.2 mm	5 mm	1.2 mm	0.047 in	32 mA	3.3 V	25 ppm	Crystal	6-SMD No Lead	XO (Standard)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XLH536 Series

20 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead

Documents

Technical documentation and resources

High-Performance Clock Oscillator Family Overview

Datasheet
