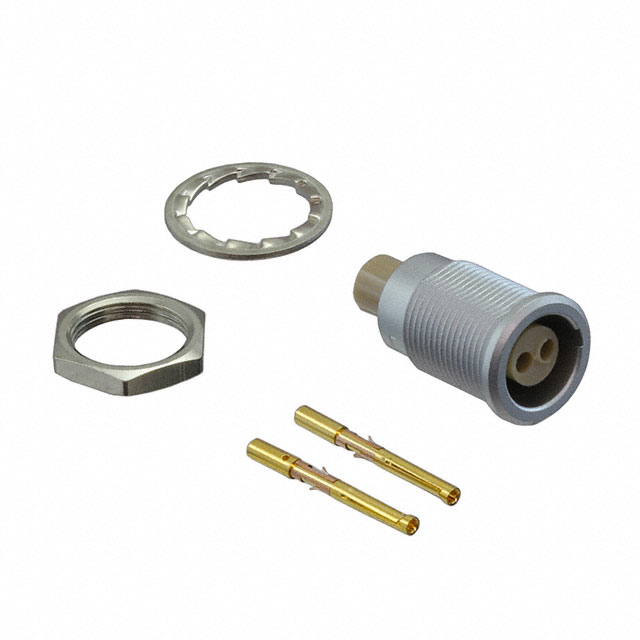

EGG.0B.302.CYM

Active

LEMO

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.0B.302.CYM

Active

LEMO

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.0B.302.CYM

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	302
Shielding	Shielded
Termination	Crimp

EGG.0B Series

Part	Note	Contact Size	Contact Shape	Type	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Ingress Protection	Shielding	Shell Size - Insert	Shell Material	Insert Material	Fastening Type	Shell Finish	Number of Positions	Primary Material	Current Rating (Amps)	Connector Type	Contact Finish - Mating	Mounting Feature	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Color	Features	Termination	Mounting Type
LEMO EGG.0B.405.YL	Note: Contacts Not Included; Insert Only Requires Shell	0.7 mm	Circular	For Female Sockets	G	-55 °C	250 °C	Crimp and Solder Cup	IP50	Unshielded	405
LEMO EGG.0B.307.CLL					G	-55 °C	250 °C		IP50	Shielded	307	Brass	Polyetheretherketone (PEEK)	Push-Pull	Chrome	7	Metal	2.5 A	Receptacle Female Sockets	Gold	Bulkhead - Rear Side Nut	UL94 V-0	59 Áin	1.5 Ám	Bronze	Silver
LEMO EGG.0B.307.ZLL					G	-55 °C	250 °C		IP50	Shielded	307		Polyetheretherketone (PEEK)			7		2.5 A	Female Sockets Insert	Gold		UL94 V-0	59 Áin	1.5 Ám	Bronze		Insert Only Requires Shell
LEMO EGG.0B.303.CLN					G	-55 °C	250 °C		IP50	Shielded	303	Brass	Polyetheretherketone (PEEK)	Push-Pull	Chrome		Metal	8 A	Receptacle Female Sockets	Gold	Bulkhead - Rear Side Nut	UL94 V-0	59 Áin	1.5 Ám	Bronze	Silver		Solder	Panel Mount Through Hole
LEMO EGG.0B.302.CYM					G	-55 °C	250 °C		IP50	Shielded	302	Brass	Polyetheretherketone (PEEK)	Push-Pull	Chrome	2	Metal	10 A	Receptacle Female Sockets	Gold	Bulkhead - Rear Side Nut	UL94 V-0	59 Áin	1.5 Ám	Bronze	Silver		Crimp
LEMO EGG.0B.306.ZLN					G	-55 °C	250 °C		IP50	Shielded	306		Polyetheretherketone (PEEK)			6		2.5 A	Female Sockets Insert	Gold		UL94 V-0	59 Áin	1.5 Ám	Bronze		Insert Only Requires Shell	Solder
LEMO EGG.0B.403.YL	Note: Contacts Not Included; Insert Only Requires Shell	0.9 mm	Circular	For Female Sockets	G	-55 °C	250 °C	Crimp and Solder Cup	IP50	Unshielded	403
LEMO EGG.0B.402.YL	Note: Contacts Not Included; Insert Only Requires Shell	0.9 mm	Circular	For Female Sockets	G	-55 °C	250 °C	Crimp and Solder Cup	IP50	Unshielded	402					2
LEMO EGG.0B.404.YL	Note: Contacts Not Included; Insert Only Requires Shell	0.7 mm	Circular	For Female Sockets	G	-55 °C	250 °C	Crimp and Solder Cup	IP50	Unshielded	404					4
LEMO EGG.0B.305.CYM					G	-55 °C	250 °C		IP50	Shielded	305	Brass	Polyetheretherketone (PEEK)	Push-Pull	Chrome		Metal	6.5 A	Receptacle Female Sockets	Gold	Bulkhead - Rear Side Nut	UL94 V-0	59 Áin	1.5 Ám	Bronze	Silver		Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.39
		10	$ 17.85
		25	$ 17.08
		50	$ 16.53
		100	$ 15.98
		250	$ 15.10
		500	$ 14.66

Description

General part information

EGG.0B Series

2 Position Circular Connector Receptacle, Female Sockets Crimp
