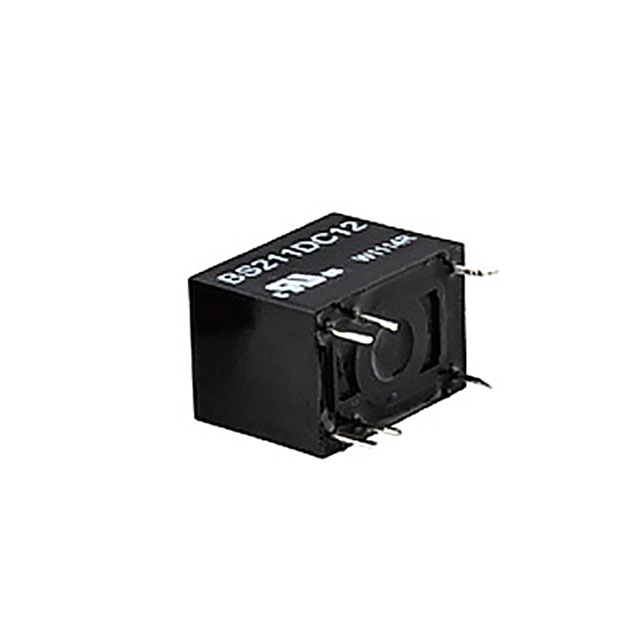

BS211DC12
ActiveHasco Relays
RELAY GEN PURPOSE SPDT 1A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BS211DC12
ActiveHasco Relays
RELAY GEN PURPOSE SPDT 1A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BS211DC12 |
|---|---|
| Coil Current | 17 mA |
| Coil Insulation | Class B |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 1 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 125 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 25 | $ 0.90 | |
Description
General part information
BS211D Series
General Purpose Relay SPDT (1 Form C) Through Hole
