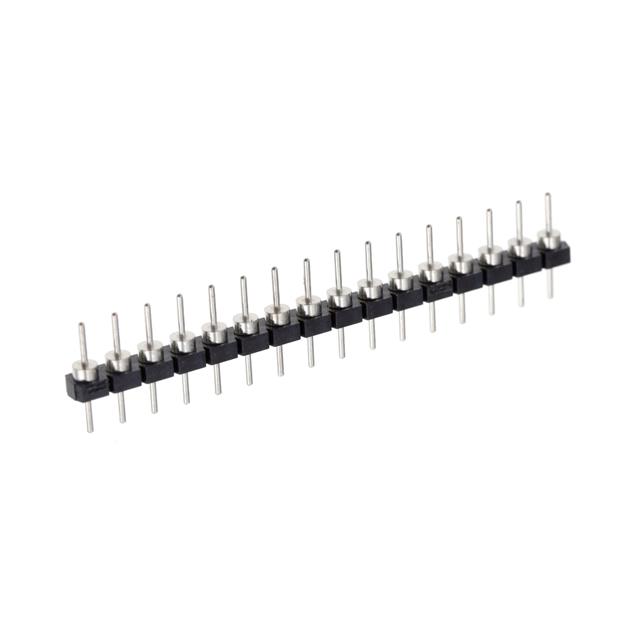

BBL-116-T-F

Unknown

Samtec Inc.

CONN HEADER VERT 16POS 2.54MM

Search across all available documentation for this part.

Unknown

Samtec Inc.

CONN HEADER VERT 16POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BBL-116-T-F

Connector Type	Header
Contact Finish - Post	Nickel
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.085 "
Insulation Height	2.15 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.43 mm
Overall Contact Length	0.332 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Shrouding	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Material	Mounting Type	Contact Shape	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Insulation Color	Fastening Type	Overall Contact Length	Overall Contact Length	Termination	Contact Finish - Post	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. BBL-116-T-E	Unshrouded	0.1 in	2.54 mm	All	Liquid Crystal Polymer (LCP)	Through Hole	Circular	16	Header	-55 °C	125 °C	0.07 in	1.78 mm	Black	Push-Pull	7.62 mm	0.3 in	Solder	Nickel	Male Pin	1.27 µm	50 µin	3.18 mm	0.125 in	1
Samtec Inc. BBL-116-T-F	Unshrouded	0.1 in	2.54 mm	All	Liquid Crystal Polymer (LCP)	Through Hole	Circular	16	Header	-55 °C	125 °C	0.085 "	2.15 mm	Black	Push-Pull	0.332 in		Solder	Nickel	Male Pin	1.27 µm	50 µin	3.18 mm	0.125 in	1	0.122 in	3.1 mm	8.43 mm
Samtec Inc. BBL-116-G-E	Unshrouded	0.1 in	2.54 mm	All	Liquid Crystal Polymer (LCP)	Through Hole	Circular	16	Header	-55 °C	125 °C	0.07 in	1.78 mm	Black	Push-Pull	7.62 mm	0.3 in	Solder	Nickel	Male Pin	1.27 µm	50 µin	3.18 mm	0.125 in	1				Gold	0.51 µm	20 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 16 position 0.100" (2.54mm)
