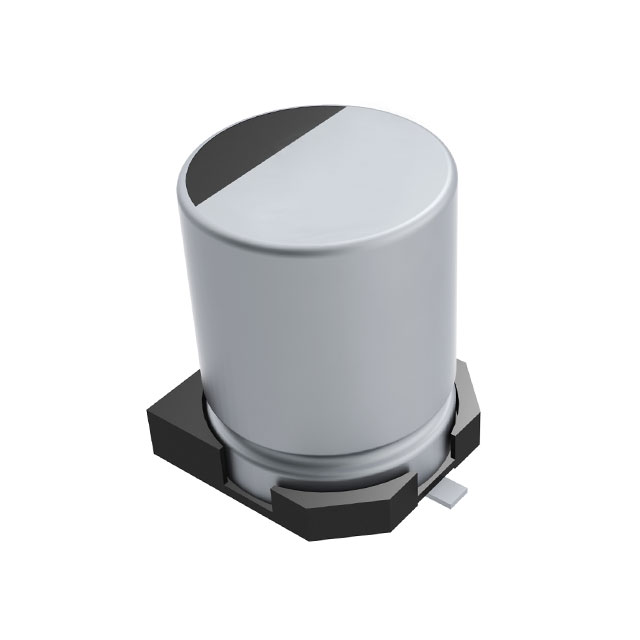

EXV226M050A9HAA - EXV Series

EXV226M050A9HAA

Active
KEMET

SMD ALUMINIUM ELECTROLYTIC CAPACITOR, EXV SERIES, 22 F, 50 V, RADIAL CAN - SMD, 6.3 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_A4003_EXV.pdfDatasheet+5
EXV226M050A9HAA - EXV Series

EXV226M050A9HAA

Active
KEMET

SMD ALUMINIUM ELECTROLYTIC CAPACITOR, EXV SERIES, 22 F, 50 V, RADIAL CAN - SMD, 6.3 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsKEM_A4003_EXV.pdfDatasheet+5

Technical Specifications

Parameters and characteristics for this part

SpecificationEXV226M050A9HAA
ApplicationsGeneral Purpose
Capacitance22 µF
ESR (Equivalent Series Resistance)1.3 Ohm
Height - Seated (Max) [Max] [z]8 mm
Height - Seated (Max) [Max] [z]0.315 in
Impedance1.3 Ohms
Lifetime @ Temp.3000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
PolarizationPolar
Ripple Current @ High Frequency230 mA
Ripple Current @ Low Frequency161 mA
Size / Dimension [diameter]0.248 in
Size / Dimension [diameter]6.3 mm
Surface Mount Land Size [x]6.6 mm
Surface Mount Land Size [x]0.26 in
Surface Mount Land Size [y]0.307 in
Surface Mount Land Size [y]7.8 mm
Tolerance20 %
Voltage - Rated50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.71
10$ 0.47
50$ 0.38
100$ 0.31
500$ 0.24
Digi-Reel® 1$ 0.71
10$ 0.47
50$ 0.38
100$ 0.31
500$ 0.24
Tape & Reel (TR) 1000$ 0.15
NewarkEach (Supplied on Cut Tape) 10$ 0.34
25$ 0.31
50$ 0.28
100$ 0.26
250$ 0.25
500$ 0.24
1000$ 0.23

Description

General part information

XV226M Series

22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.3Ohm @ 100kHz 3000 Hrs @ 105°C
