6380-4SG-315

Active

Conxall/Switchcraft

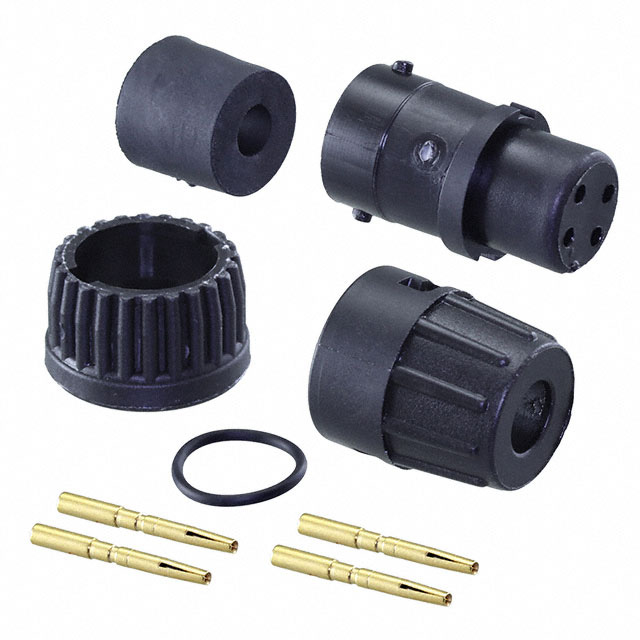

CONN PLUG FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	6380-4SG-315

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.17 in, 0.15 in
Cable Opening [custom]	3.81 mm, 4.32 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

Part	Contact Finish - Mating	Orientation	Ingress Protection	Backshell Material, Plating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Termination	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Voltage Rating	Current Rating (Amps)	Shielding	Applications	Fastening Type	Contact Material	Mounting Type	Color	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6380-4SG-318	Gold	Keyed	Weathertight	Nylon Polyamide (PA)	Backshell	-40 °C	115 °C	Female Sockets Plug	4	Crimp	4.57 mm	0.18 in	0.2 in	5.08 mm	600 V	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Bayonet Lock	Brass	Free Hanging (In-Line)	Black	Plastic
Conxall/Switchcraft 6380-4SG-315	Gold	Keyed	Weathertight	Nylon Polyamide (PA)	Backshell	-40 °C	115 °C	Female Sockets Plug	4	Crimp					600 V	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Bayonet Lock	Brass	Free Hanging (In-Line)	Black	Plastic	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 6380-4SG-311	Gold	Keyed	Weathertight	Nylon Polyamide (PA)	Backshell	-40 °C	115 °C	Female Sockets Plug	4	Crimp					600 V	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Bayonet Lock	Brass	Free Hanging (In-Line)	Black	Plastic			2.29 mm	0.09 in 0.14 in	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Crimp
