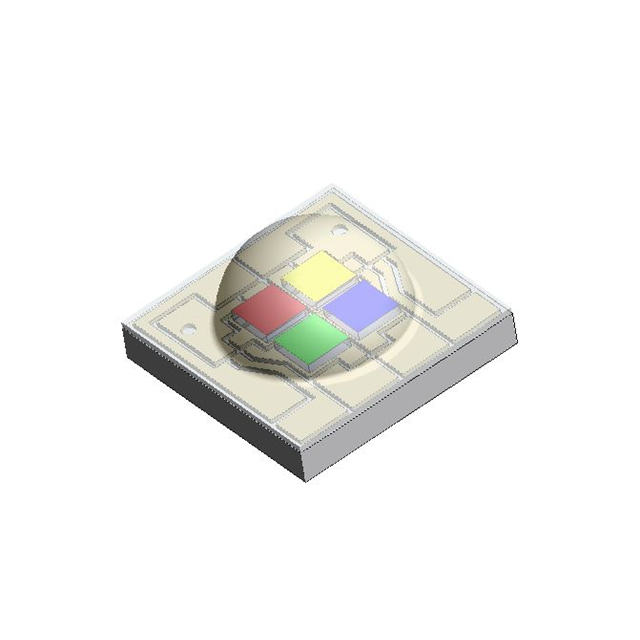

QBHP684-RGBCWBU

Active

QT Brightek (QTB)

LED RGBW 630NM/520NM/460NM 1414

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBHP684-RGBCWBU

Active

QT Brightek (QTB)

LED RGBW 630NM/520NM/460NM 1414

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBHP684-RGBCWBU

Color	Green, Blue, White, Red
Current - Max [custom]	350 mA
Current - Max [custom]	350 mA
Current - Max [custom]	350 mA
Current - Max [custom]	350 mA
Current - Test [custom]	350 mA
Current - Test [custom]	350 mA
Current - Test [custom]	350 mA
Current - Test [custom]	350 mA
Height - Seated (Max) [Max]	0.081 in
Height - Seated (Max) [Max]	2.05 mm
Lumens/Watt @ Current - Test [custom]	179 lm/W
Lumens/Watt @ Current - Test [custom]	67 lm/W
Lumens/Watt @ Current - Test [custom]	13 lm/W
Lumens/Watt @ Current - Test [custom]	42 lm/W
Luminous Flux @ Current/Temperature [custom]	75 lm
Luminous Flux @ Current/Temperature [custom]	15 lm, 200 lm
Luminous Flux @ Current/Temperature [custom]	35 lm
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Supplier Device Package	1414
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.4 V, 3.2 V, 3.2 V, 3.2 V
Wavelength	460nm Blue, 630nm Red, 520nm Green

QBHP684 Series

Part	Type	Wavelength	Viewing Angle	Current - DC Forward (If) (Max) [Max]	Package / Case	Mounting Type	Voltage - Forward (Vf) (Typ)	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If	Package / Case	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Color	Wavelength	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Radiant Intensity (Ie) Min @ If [Min]	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
QT Brightek (QTB) QBHP684E-UV365AS	Ultraviolet (UV)	367 nm	60 °	700 mA	2-SMD No Lead Exposed Pad	Surface Mount	3.4 V	Top View	80 °C	-40 °C
QT Brightek (QTB) QBHP684E-UV265N	Ultraviolet (UV)	265 nm	120 °	150 mA	1414	Surface Mount	6 V	Top View			7 mW/sr	3535 Metric	-10 °C	50 °C
QT Brightek (QTB) QBHP684-RGBCWBU			120 °		1414	Surface Mount	2.4 V 3.2 V 3.2 V 3.2 V					3535 Metric			75 lm	15 lm 200 lm	35 lm	179 lm/W	67 lm/W	13 lm/W	42 lm/W	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA	350 mA	350 mA	350 mA	350 mA	350 mA	350 mA	350 mA	Blue Green Red White	460nm Blue 520nm Green 630nm Red	0.081 in	2.05 mm
QT Brightek (QTB) QBHP684E-UV265	Ultraviolet (UV)	265 nm	120 °	40 mA	1414	Surface Mount	6 V	Top View				3535 Metric	-10 °C	50 °C																									1.6 mW/sr
QT Brightek (QTB) QBHP684-RGBBU			120 °		1414	Surface Mount						3535 Metric							67 lm/W	13 lm/W	42 lm/W	1414	3.45 mm	0.136 in	0.136 in	3.45 mm		350 mA	350 mA	350 mA					Blue Green Red	460nm Blue 520nm Green 630nm Red				15 lm 35 lm 75 lm	3.2 V	2.4 V	3.2 V
QT Brightek (QTB) QBHP684E-V850Y2	Infrared (IR)	850 nm	25 °	1.2 A	1414	Surface Mount	2.3 V	Top View	85 °C	-40 °C		3535 Metric
QT Brightek (QTB) QBHP684E-UV405BS	Ultraviolet (UV)	405 nm	120 °	700 mA	2-SMD No Lead Exposed Pad	Surface Mount	3.4 V	Top View	80 °C	-40 °C
QT Brightek (QTB) QBHP684E-UV280H	Ultraviolet (UV)	278 nm	120 °	150 mA	1414	Surface Mount	7 V	Top View				3535 Metric	-10 °C	50 °C
QT Brightek (QTB) QBHP684E-UV385AS	Ultraviolet (UV)	385 nm	60 °	700 mA	2-SMD No Lead Exposed Pad	Surface Mount	3.4 V	Top View	80 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 3.40
		1000	$ 3.12
		2500	$ 2.99

Description

General part information

QBHP684 Series

LED Lighting Color High Power Red, Green, Blue, White (RGBW) 630nm Red, 520nm Green, 460nm Blue 1414 (3535 Metric)
