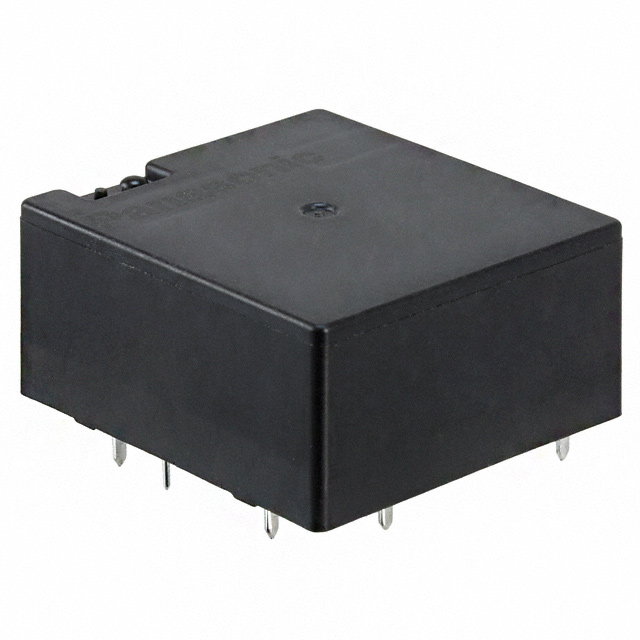

SFY2-DC24V
ActivePanasonic Electric Works
RELAY SAFETY 4PST 6A 24V
Deep-Dive with AI
Search across all available documentation for this part.
SFY2-DC24V
ActivePanasonic Electric Works
RELAY SAFETY 4PST 6A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFY2-DC24V |
|---|---|
| Coil Power | 670 mW |
| Coil Resistance | 864 Ohms |
| Coil Voltage | 24 VDC |
| Contact Form | 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 6 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 3.6 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 22.05 | |
| 20 | $ 20.95 | |||
| 40 | $ 19.41 | |||
Description
General part information
SFY2 Series
RELAY SAFETY 4PST 6A 24V
Documents
Technical documentation and resources
No documents available
