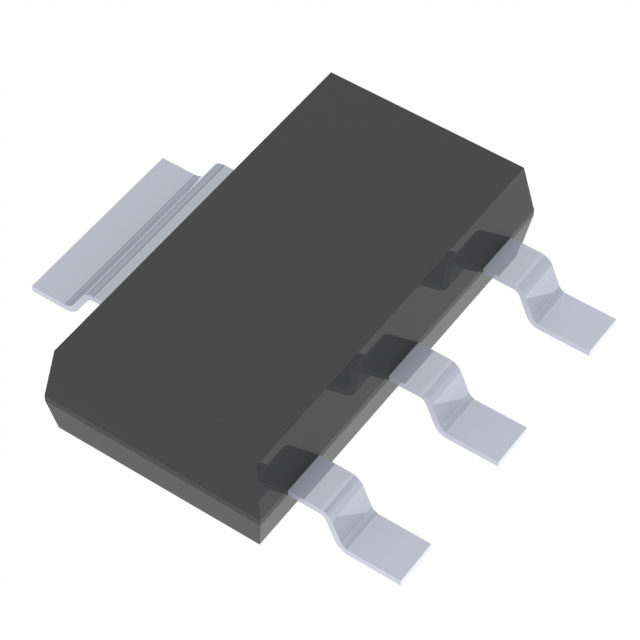

ZXMS6004SGQ-13
Active60V N-CHANNEL SELF PROTECTED ENHANCEMENT MODE INTELLIFET MOSFET
Deep-Dive with AI
Search across all available documentation for this part.
ZXMS6004SGQ-13
Active60V N-CHANNEL SELF PROTECTED ENHANCEMENT MODE INTELLIFET MOSFET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZXMS6004SGQ-13 |
|---|---|
| Current - Output (Max) [Max] | 1.3 A |
| Fault Protection | Over Temperature, Over Voltage, Current Limiting (Fixed), Short Circuit |
| Features | Auto Restart |
| Grade | Automotive |
| Input Type | Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Package / Case | TO-261AA, TO-261-4 |
| Qualification | AEC-Q101 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 350 mOhm |
| Supplier Device Package | SOT-223 |
| Switch Type | General Purpose |
| Voltage - Load | 60 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 0.22 | |
| 5000 | $ 0.20 | |||
| 12500 | $ 0.19 | |||
| 25000 | $ 0.18 | |||
Description
General part information
ZXMS6004SGQ Series
The ZXMS6004SGQ is a self protected low side IntelliFET™ MOSFET with logic level input. It integrates over-temperature, overcurrent, over-voltage (active clamp) and ESD protected logic level functionality. The ZXMS6004SGQ is ideal as a general purpose switch driven from 3.3V or 5V microcontrollers in harsh environments where standard MOSFETs are not rugged enough.
