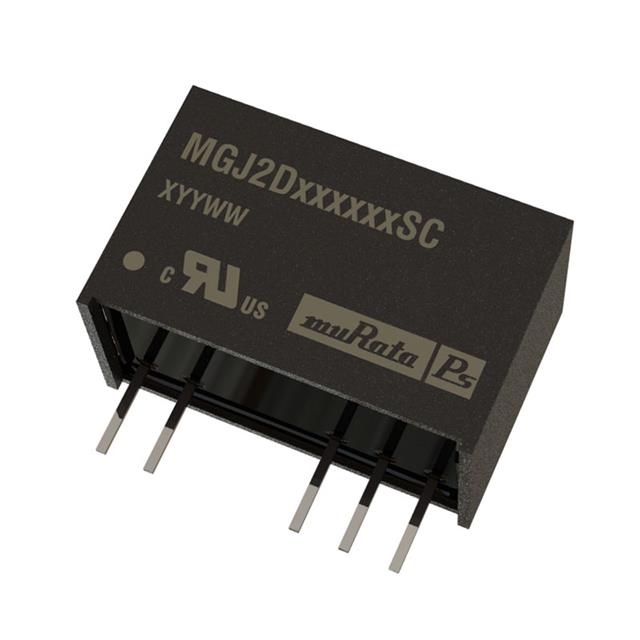

MGJ2D151802SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 18V -2.5V 1.6W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 18V -2.5V 1.6W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Number of Outputs	Efficiency	Package / Case	Voltage - Input (Max) [Max]	Type	Mounting Type	Voltage - Output 2	Features	Voltage - Isolation	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Applications
Murata Power Solutions Inc. MGJ2D151509SC	2 W	2	80 %	7-SIP Module 5 Leads	16.5 V	Isolated Module	Through Hole	-8.7 V	SCP	5.2 kV	13.5 V	100 °C	-40 °C	40 mA 80 mA	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	15 V	ITE (Commercial) Medical
Murata Power Solutions Inc. MGJ2D151802SC	1.6 W	2	79 %	7-SIP Module 5 Leads	16.5 V	Isolated Module	Through Hole			5.2 kV	13.5 V	100 °C	-40 °C	80 mA							18 V	ITE (Commercial) Medical
Murata Power Solutions Inc. MGJ2D151505SC	2 W	2	80 %	7-SIP Module 5 Leads	16.5 V	Isolated Module	Through Hole	-5 V	SCP	5.2 kV	13.5 V	100 °C	-40 °C	40 mA 80 mA	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	15 V	ITE (Commercial) Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 18V -2.5V 80mA, 80mA 13.5V - 16.5V Input
