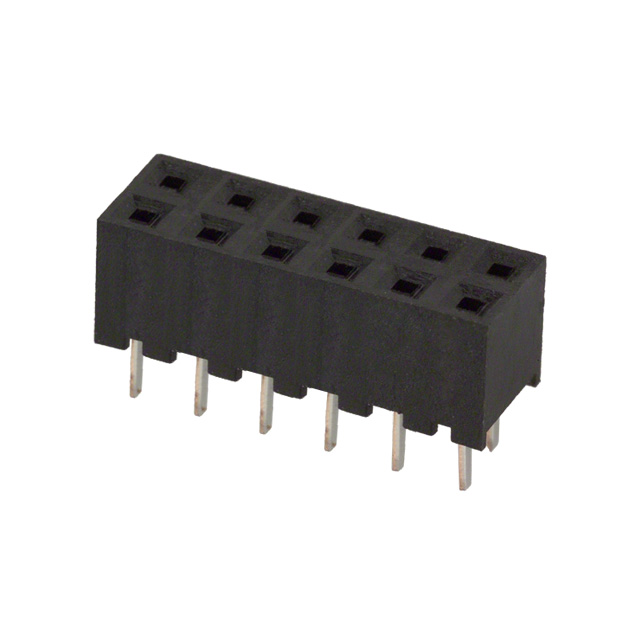

A3C-12DA-2DSA(71)

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA3C-12DA-2DSA(71) Spec Datasheet

A3C-12DA-2DSA(71)

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsA3C-12DA-2DSA(71) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3C-12DA-2DSA(71)

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Mated Stacking Heights	6 mm, 5.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

A3C-12DA Series

Part	Mated Stacking Heights	Number of Positions	Material Flammability Rating	Style	Applications	Number of Positions Loaded	Contact Finish - Post	Contact Material	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Finish - Mating	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Insulation Color	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Mounting Type	Termination	Fastening Type
Hirose Electric USA, Inc. A3C-12DA-2DSC	5.1 mm 6 mm	12	UL94 V-0	Board to Board Cable	General Purpose Telecommunications	All	Tin	Phosphor Bronze	0.165 in	4.2 mm	Female Socket	Gold	Receptacle	0.079 in	2 mm	85 °C	-55 °C	Polybutylene Terephthalate (PBT)	Black	2	1 çm	39.4 çin	0.203 Ám	8 Áin	0.079 "	2 mm	0.079 in	2 mm	Square	Through Hole	Solder	Push-Pull
Hirose Electric USA, Inc. A3C-12DA-2DSA	5.1 mm 6 mm	12	UL94 V-0	Board to Board Cable	General Purpose Telecommunications	All	Tin	Phosphor Bronze	0.165 in	4.2 mm	Female Socket	Gold	Receptacle	0.079 in	2 mm	85 °C	-55 °C	Polybutylene Terephthalate (PBT)	Black	2	1 çm	39.4 çin	0.203 Ám	8 Áin	0.118 in	3 mm	0.079 in	2 mm	Square	Through Hole	Solder	Push-Pull
Hirose Electric USA, Inc. A3C-12DA-2DSA(71)	5.1 mm 6 mm	12	UL94 V-0	Board to Board Cable	General Purpose Telecommunications	All	Tin	Phosphor Bronze	0.165 in	4.2 mm	Female Socket	Gold	Receptacle	0.079 in	2 mm	85 °C	-55 °C	Polybutylene Terephthalate (PBT)	Black	2	1 çm	39.4 çin	0.203 Ám	8 Áin	0.118 in	3 mm	0.079 in	2 mm	Square	Through Hole	Solder	Push-Pull
Hirose Electric USA, Inc. A3C-12DA-2DSC(71)	5.1 mm 6 mm	12	UL94 V-0	Board to Board Cable	General Purpose Telecommunications	All	Tin	Phosphor Bronze	0.165 in	4.2 mm	Female Socket	Gold	Receptacle	0.079 in	2 mm	85 °C	-55 °C	Polybutylene Terephthalate (PBT)	Black	2	1 çm	39.4 çin	0.203 Ám	8 Áin	0.079 "	2 mm	0.079 in	2 mm	Square	Through Hole	Solder	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.05
		10	$ 1.78
		180	$ 1.59
		540	$ 1.33
		1080	$ 1.14
		5040	$ 1.01
		10080	$ 0.98
Newark	Each	1	$ 1.70
		2520	$ 1.50

Description

General part information

A3C-12DA Series

12 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

A3C-12DA-2DSA(71) Spec

Datasheet
