KTPS90-1207-P1

Active

Volgen + Furuno

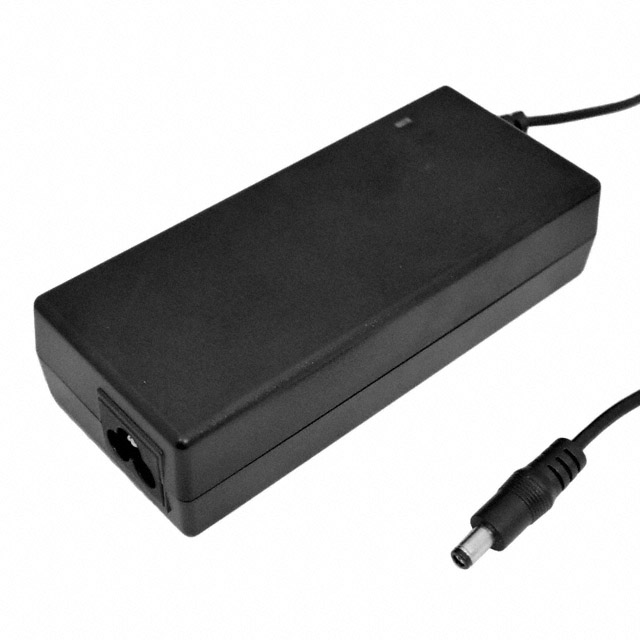

AC/DC DESKTOP ADAPTER 12V 90W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KTPS90-1207-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 12V 90W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KTPS90-1207-P1

Applications	ITE (Commercial)
Approval Agency	IEC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max)	7 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C6
Input Type	Cord
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	90 W
Region Utilized	International
Size / Dimension [x]	139 mm
Size / Dimension [x]	5.47 in
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	36 mm
Size / Dimension [z]	1.42 in
Standard Number	62368-1
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	12 V
Weight	0.915 lb
Weight	415.04 g

KTPS90 Series

Part	Voltage - Output	Region Utilized	Power (Watts)	Operating Temperature [Max]	Weight	Weight	Polarization	Input Type	Form	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Cord Length	Cord Length	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Approval Agency	Output Connector [diameter]	Output Connector [x]	Output Connector	Standard Number	Current - Output (Max)	Applications	Current - Output (Max) [Max]
Volgen + Furuno KTPS90-1207-P1	12 V	International	90 W	40 °C	0.915 lb	415.04 g	Positive Center	Cord	Desktop (Class I)	36 mm	139 mm	2.4 "	5.47 in	1.42 in	61 mm	1.5 m	59 in	IEC 320-C6	240 VAC	100 VAC	Level VI	IEC	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	62368-1	7 A	ITE (Commercial)
Volgen + Furuno KTPS90-2437-P1	24 V	International	90 W	40 °C	0.915 lb	415.04 g	Positive Center	Cord	Desktop (Class I)	36 mm	139 mm	2.4 "	5.47 in	1.42 in	61 mm	1.5 m	59 in	IEC 320-C6	240 VAC	100 VAC	Level VI	IEC	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	62368-1		ITE (Commercial)	3.75 A
Volgen + Furuno KTPS90-1947	19 V	International	90 W	40 °C	0.915 lb	415.04 g	Positive Center	Cord	Desktop (Class I)	36 mm	139 mm	2.4 "	5.47 in	1.42 in	61 mm	1.5 m	59 in	IEC 320-C6	240 VAC	100 VAC	Level VI	CB CE cUL GS PSE UL	2.5 mm 5.5 mm	9.5 mm	Barrel Plug			ITE (Commercial)
Volgen + Furuno KTPS90-1506	15 VDC	International	90 W	40 °C	0.915 lb	415.04 g	Positive Center	Cord	Desktop (Class I)	36 mm	139 mm	2.4 "	5.47 in	1.42 in	61 mm	1.5 m	59 in	IEC 320-C6	240 VAC	100 VAC	Level VI	CB CE cUL GS PSE UL	2.5 mm 5.5 mm	9.5 mm	Barrel Plug			ITE (Commercial)	6 A
Volgen + Furuno KTPS90-1207	12 V	International	90 W	40 °C	0.915 lb	415.04 g	Positive Center	Cord	Desktop (Class II)	36 mm	139 mm	2.4 "	5.47 in	1.42 in	61 mm	1.5 m	59 in	IEC 320-C6	240 VAC	100 VAC	Level VI	IEC	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	62368-1	7 A	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	504	$ 49.74

Description

General part information

KTPS90 Series

12V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
