QADA-120-12-1442
ActiveQualtek

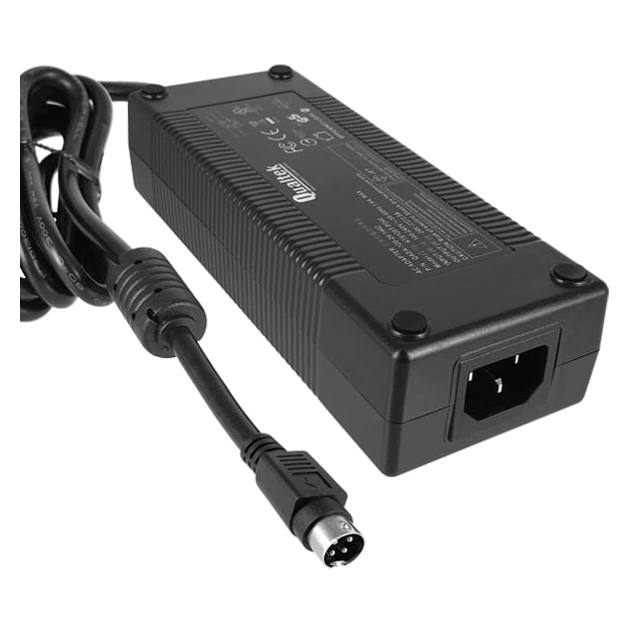

AC/DC DESKTOP ADAPTER 12V 108W
Deep-Dive with AI
Search across all available documentation for this part.
QADA-120-12-1442
ActiveQualtek
AC/DC DESKTOP ADAPTER 12V 108W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QADA-120-12-1442 |
|---|---|
| Approval Agency | cULus, FCC, CE, CB, BSMI, GS, PSE |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 108 W |
| Region Utilized | International |
| Size / Dimension [x] | 6.62 in |
| Size / Dimension [x] | 168.1 mm |
| Size / Dimension [y] | 2.6 " |
| Size / Dimension [y] | 66 mm |
| Size / Dimension [z] | 1.54 " |
| Size / Dimension [z] | 39 mm |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 12 V |
| Weight | 1.301 lb |
| Weight | 590 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.02 | |
Description
General part information
QADA-120 Series
12V 108 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
