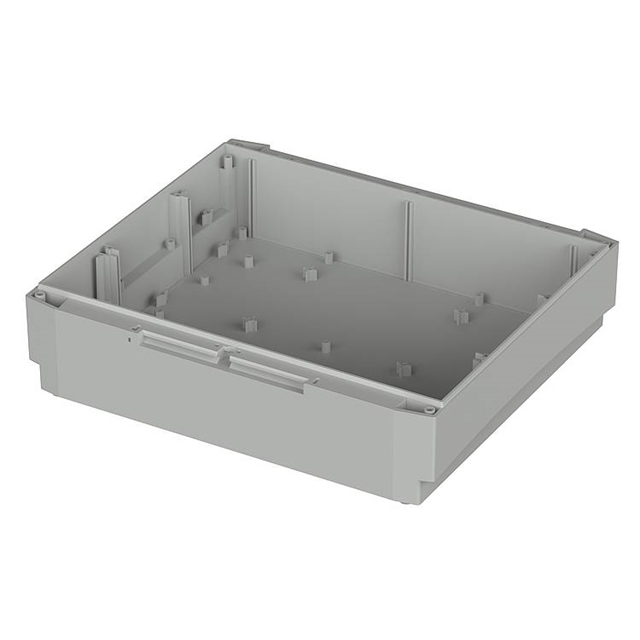

BCD 310 UT-0.5-7035

Active

Bopla Enclosures

BOX ABS GRAY 12.6"L X 11.14"W

Search across all available documentation for this part.

Active

Bopla Enclosures

BOX ABS GRAY 12.6"L X 11.14"W

Technical Specifications

Parameters and characteristics for this part

Specification	BCD 310 UT-0.5-7035

Area (L x W) [custom]	140 in²
Area (L x W) [custom]	903 cm²
Color	Gray
Container Type	Box
Design	Open End(s)
Features	PCB Supports, Card Guides
Height [z]	71 mm
Height [z]	2.795 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	320 mm
Size / Dimension [x]	12.598 "
Size / Dimension [y]	283 mm
Size / Dimension [y]	11.142 in
Thickness	0.157 in
Thickness	4 mm

Part	Material	Color	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	For Use With/Related Products	Design	Container Type	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Thickness	Height [z]	Height [z]	Material Flammability Rating
Bopla Enclosures BCD 310 OT-G-7024	Plastic Polycarbonate	Clear Gray Frame	Cover Lid	1.465 "	324 mm	289 mm	11.378 "	37.2 mm	12.756 "	Hinged	BOCARD 310 System
Bopla Enclosures BCD 310 KRD-7024	Plastic Polycarbonate	Gray	Cover Lid								BOCARD 310 System
Bopla Enclosures BCD 310 UT-0.5-7035	Plastic ABS	Gray			320 mm	283 mm	11.142 in		12.598 "	Card Guides PCB Supports		Open End(s)	Box	140 in²	903 cm²	0.157 in	4 mm	71 mm	2.795 in	UL94 HB
Bopla Enclosures BCD 310 UT-7035	Plastic ABS	Gray			320 mm	283 mm	11.142 in		12.598 "	Card Guides PCB Supports		Open End(s)	Box	140 in²	903 cm²	0.157 in	4 mm	105 mm	4.134 in	UL94 HB
Bopla Enclosures BCD 310 KRD-7035	Plastic Polycarbonate	Gray	Cover Lid								BOCARD 310 System
Bopla Enclosures BCD 310 OT-FSC-7024	Plastic Polycarbonate	Gray	Cover Lid	1.465 "	324 mm	289 mm	11.378 "	37.2 mm	12.756 "	Hinged	BOCARD 310 System
Bopla Enclosures BCD 310 OT-G-7035	Plastic Polycarbonate	Clear Gray Frame	Cover Lid	1.465 "	324 mm	289 mm	11.378 "	37.2 mm	12.756 "	Hinged	BOCARD 310 System

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.12

General part information

Box Plastic, ABS Gray Open End(s) 12.598" L x 11.142" W (320.00mm x 283.00mm) X 2.795" (71.00mm)
