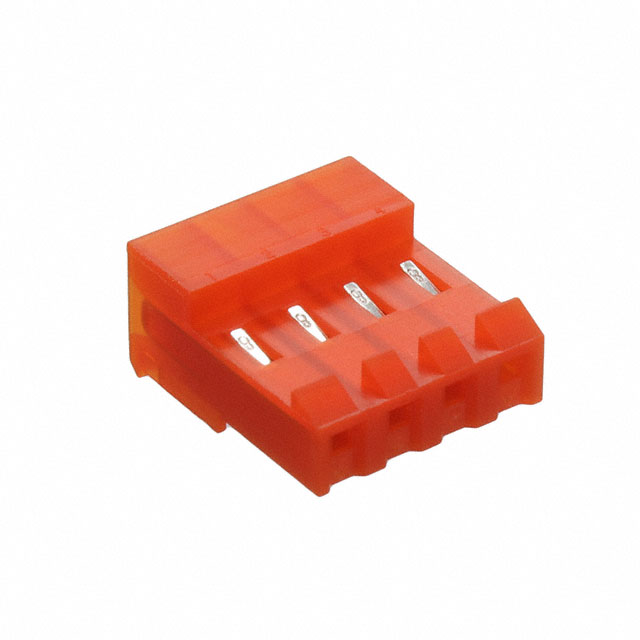

MTD-B-04-A-2

Active

Adam Tech

WIRE HOUSING IDC, .156", 18AWG,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

MTD-B-04-A-2

Active

Adam Tech

WIRE HOUSING IDC, .156", 18AWG,

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTD-B-04-A-2

Cable Termination	IDC
Connector Type	Receptacle
Contact Finish	Tin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Closed End
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Number of Rows	1
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Wire Gauge	18 AWG
Wire Type	Discrete or Ribbon Cable

MTD-B Series

Part	Number of Positions	Features	Pitch [x]	Pitch [x]	Cable Termination	Contact Type	Fastening Type	Contact Finish	Wire Gauge	Mounting Type	Wire Type	Connector Type	Number of Rows	Color	For Use With/Related Products	Accessory Type
Adam Tech MTD-B-04-A-1	4	Feed Through	0.156 in	3.96 mm	IDC	Female Socket	Locking Ramp	Tin	18 AWG	Free Hanging (In-Line) Right Angle	Discrete or Ribbon Cable	Receptacle	1
Adam Tech MTD-B-03-C-2		Closed End	0.156 in	3.96 mm	IDC	Female Socket	Locking Ramp	Tin	22 AWG	Free Hanging (In-Line) Right Angle	Discrete or Ribbon Cable	Receptacle	1	Red
Adam Tech MTD-B-07-B-2	7	Closed End	0.156 in	3.96 mm	IDC	Female Socket	Locking Ramp	Tin	20 AWG	Free Hanging (In-Line) Right Angle	Discrete or Ribbon Cable	Receptacle	1	Yellow
Adam Tech MTD-B-07-A-1	7	Feed Through	0.156 in	3.96 mm	IDC	Female Socket	Locking Ramp	Tin	18 AWG	Free Hanging (In-Line) Right Angle	Discrete or Ribbon Cable	Receptacle	1
Adam Tech MTD-B-06-C-1	6	Feed Through	0.156 in	3.96 mm	IDC	Female Socket	Locking Ramp	Tin	22 AWG	Free Hanging (In-Line) Right Angle	Discrete or Ribbon Cable	Receptacle	1	Red
Adam Tech MTD-B-04-A-2	4	Closed End	0.156 in	3.96 mm	IDC	Female Socket	Locking Ramp	Tin	18 AWG	Free Hanging (In-Line) Right Angle	Discrete or Ribbon Cable	Receptacle	1
Adam Tech MTD-BC-04	4														MTD-B Series	Cap (Cover)
Adam Tech MTD-B-07-B-1	7	Feed Through	0.156 in	3.96 mm	IDC	Female Socket	Locking Ramp	Tin	20 AWG	Free Hanging (In-Line) Right Angle	Discrete or Ribbon Cable	Receptacle	1	Yellow
Adam Tech MTD-B-06-C-2	6	Closed End	0.156 in	3.96 mm	IDC	Female Socket	Locking Ramp	Tin	22 AWG	Free Hanging (In-Line) Right Angle	Discrete or Ribbon Cable	Receptacle	1	Red
Adam Tech MTD-B-05-A-1		Feed Through	0.156 in	3.96 mm	IDC	Female Socket	Locking Ramp	Tin	18 AWG	Free Hanging (In-Line) Right Angle	Discrete or Ribbon Cable	Receptacle	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.21
		10	$ 0.92
		25	$ 0.83
		50	$ 0.77
		100	$ 0.71
		250	$ 0.64
		500	$ 0.59
