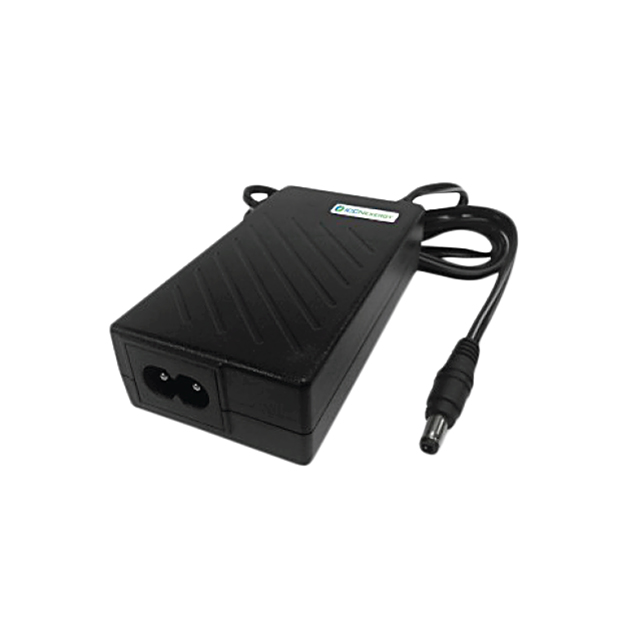

FWE050024B-10A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 24V 50W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 24V 50W

Technical Specifications

Parameters and characteristics for this part

Part	Input Connector	Form	Polarization	Applications	Input Type	Region Utilized	Approval Agency	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Cord Length	Cord Length	Weight	Weight	Output Connector [diameter]	Output Connector [x]	Output Connector	Power (Watts)	No Load Power Consumption	Current - Output (Max) [Max]	Standard Number	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]
Inventus Power FWE050024B-10A	IEC 320-C8	Desktop (Class II)	Positive Center	ITE (Commercial)	Cord	International	CB CCC CE cTUVus	Level VI	114.2 mm	2.26 in	36.5 mm	1.44 "	4.5 in	57.5 mm	1.22 m	48 in	0.508 lb	230.42 g	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	50 W	300 mW	2.08 A	60950-1 62368-1	24 V	60 °C	0 °C
Inventus Power FWE050024A-10A	IEC 320-C14	Desktop (Class I)	Positive Center	ITE (Commercial)	Cord	International	CB CCC CE cTUVus	Level VI	114.2 mm	2.26 in	36.5 mm	1.44 "	4.5 in	57.5 mm	1.22 m	48 in	0.4 lb	181.44 g	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	50 W	100 mW	2.08 A	62368-1	24 V	60 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
