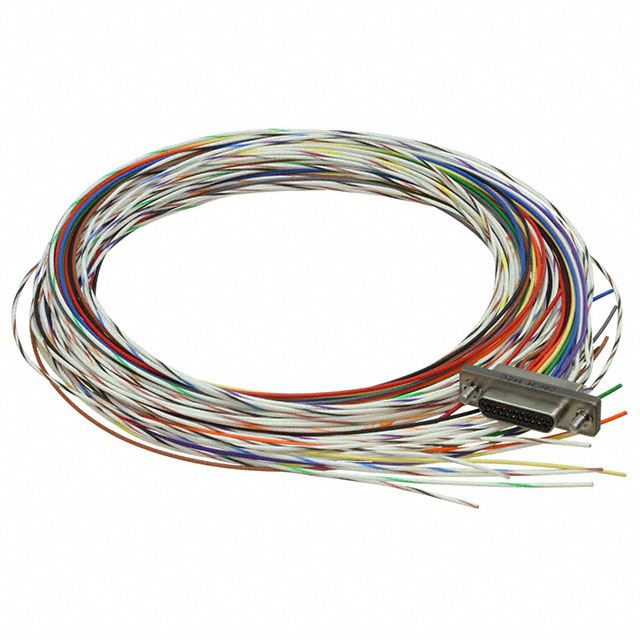

DCHM21P6N5-36.0MN-HT1

Active

Cinch Connectivity Solutions Trompeter

HIGH TEMPERATURE MICRO-D, METAL HELL PLUG ,21 POSITION, MALE, WIRE LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DCHM21P6N5-36.0MN-HT1

Active

Cinch Connectivity Solutions Trompeter

HIGH TEMPERATURE MICRO-D, METAL HELL PLUG ,21 POSITION, MALE, WIRE LEAD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCHM21P6N5-36.0MN-HT1

1st Connector	Plug, Male Pins
2nd Connector	Individual Wire Leads
Color	Multiple, Individual
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	21
Shielding	Unshielded
Type	D-Type, Micro-D

DCHM Series

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	1st Connector	2nd Connector	Length [x]	Length [x]	Contact Finish	Type	Number of Positions	Color
Cinch Connectivity Solutions Trompeter DCHM15P6N6-18.0BN-HT1	Unshielded	50 µin	1.27 µm	Plug Male Pins	Individual Wire Leads	457.2 mm	1.5 ft	Gold	D-Type Micro-D	15	Individual Multiple
Cinch Connectivity Solutions Trompeter DCHM25P6N6-36.0MN-HT1	Unshielded	50 µin	1.27 µm	Plug Male Pins	Individual Wire Leads	914.4 mm	3 ft	Gold	D-Type Micro-D		Individual Multiple
Cinch Connectivity Solutions Trompeter DCHM15S6N5-36.0MN-HT1	Unshielded	50 µin	1.27 µm	Female Sockets Receptacle	Individual Wire Leads	914.4 mm	3 ft	Gold	D-Type Micro-D	15	Individual Multiple
Cinch Connectivity Solutions Trompeter DCHM15S6N6-36.0MN-HT1	Unshielded	50 µin	1.27 µm	Female Sockets Receptacle	Individual Wire Leads	914.4 mm	3 ft	Gold	D-Type Micro-D	15	Individual Multiple
Cinch Connectivity Solutions Trompeter DCHM15S6N6-36.0FN-HT1	Unshielded	50 µin	1.27 µm	Female Sockets Receptacle	Individual Wire Leads	914.4 mm	3 ft	Gold	D-Type Micro-D	15	Individual Multiple
Cinch Connectivity Solutions Trompeter DCHM21P6N5-36.0MN-HT1	Unshielded	50 µin	1.27 µm	Plug Male Pins	Individual Wire Leads	914.4 mm	3 ft	Gold	D-Type Micro-D	21	Individual Multiple
Cinch Connectivity Solutions Trompeter DCHM21S6N5-36.0FN-HT1	Unshielded	50 µin	1.27 µm	Female Sockets Receptacle	Individual Wire Leads	914.4 mm	3 ft	Gold	D-Type Micro-D	21	Individual Multiple
Cinch Connectivity Solutions Trompeter DCHM21S6N5-36.0BN-HT1	Unshielded	50 µin	1.27 µm	Female Sockets Receptacle	Individual Wire Leads	914.4 mm	3 ft	Gold	D-Type Micro-D	21	Individual Multiple
Cinch Connectivity Solutions Trompeter DCHM9P6N6-18.0BN-HT1	Unshielded	50 µin	1.27 µm	Plug Male Pins	Individual Wire Leads	457.2 mm	1.5 ft	Gold	D-Type Micro-D	9	Individual Multiple
Cinch Connectivity Solutions Trompeter DCHM25P6N6-18.0BN-HT1	Unshielded	50 µin	1.27 µm	Plug Male Pins	Individual Wire Leads	457.2 mm	1.5 ft	Gold	D-Type Micro-D		Individual Multiple

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 183.36
		10	$ 143.36
		25	$ 130.73
		50	$ 122.22

Description

General part information

DCHM Series

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 3.00' (914.40mm) Plug, Male Pins to Individual Wire Leads Unshielded

Documents

Technical documentation and resources

No documents available
