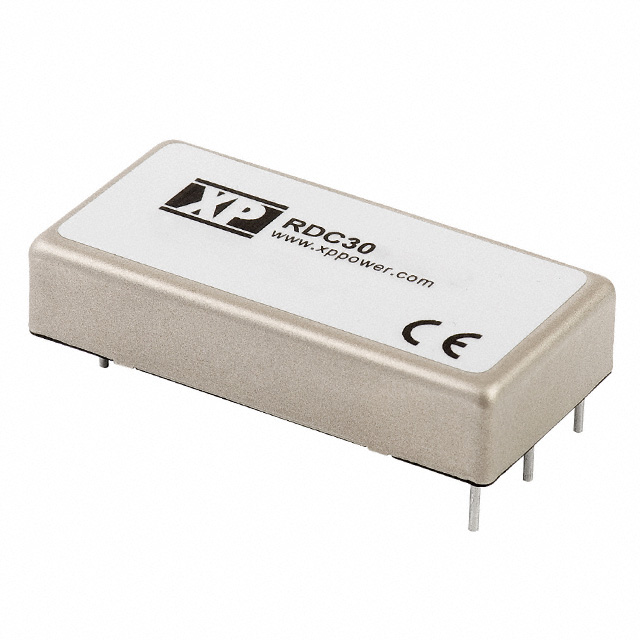

RDC3072T0312

Active

XP POWER

DC DC CONVERTER 3.3V +/-12V 30W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 3.3V +/-12V 30W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Mounting Type	Applications	Efficiency	Voltage - Isolation	Standard Number	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Number of Outputs	Type	Voltage - Output 2	Control Features	Voltage - Output 3	Current - Output (Max) [Max]
XP POWER RDC3072T0312	-40 °C	75 ░C	OCP OVP Remote On/Off SCP UVLO	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	7-DIP Module	420 mA	420 mA	5 A	Through Hole	Railway	89 %	1.5 kV	62368-1	3.3 V	140 V	36 V	30 W	3	Isolated Module	12 V	Active High Enable	-12 V
XP POWER RDC3072T0512	-40 °C	75 ░C	OCP OVP Remote On/Off SCP UVLO	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	7-DIP Module	420 mA	420 mA	4 A	Through Hole	Railway	90 %	1.5 kV	62368-1	5 V	140 V	36 V	30 W	3	Isolated Module	12 V	Active High Enable	-12 V
XP POWER RDC3072T0315	-40 °C	75 ░C	OCP OVP Remote On/Off SCP UVLO	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	7-DIP Module	330 mA	330 mA	5 A	Through Hole	Railway	88 %	1.5 kV	62368-1	3.3 V	140 V	36 V	30 W	3	Isolated Module	15 V	Active High Enable	-15 V
XP POWER RDC3072S12	-40 °C	75 ░C	OCP OVP Remote On/Off SCP UVLO	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	7-DIP Module 6 Leads				Through Hole	Railway	88 %	1.5 kV	62368-1	12 V	140 V	36 V	30 W	1	Isolated Module		Active High Enable		2.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 134.42

General part information

Isolated Module DC DC Converter 3 Output 3.3V 12V -12V 5A, 420mA, 420mA 36V - 140V Input
