43280-505
ActiveLaird Thermal Systems, Inc.

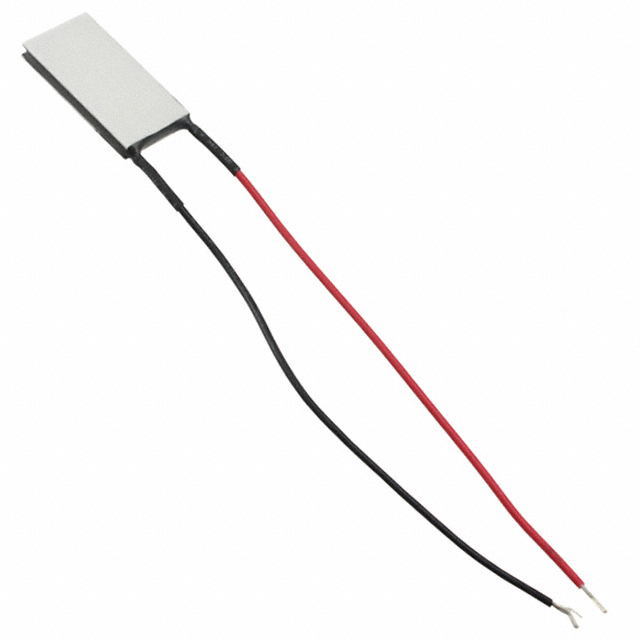

PELTIER CP10,63,06,L1,EP,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
43280-505
ActiveLaird Thermal Systems, Inc.
PELTIER CP10,63,06,L1,EP,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 43280-505 |
|---|---|
| Current - Max [Max] | 3 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 3.58 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 12.7 W |
| Resistance | 2.16 Ohms |
| Size / Dimension [x] | 29.72 mm |
| Size / Dimension [y] | 15 mm |
| Voltage - Max [Max] | 7.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.64 | |
| 5 | $ 25.13 | |||
| 20 | $ 24.38 | |||
| 40 | $ 23.63 | |||
| 60 | $ 23.02 | |||
| 100 | $ 22.42 | |||
Description
General part information
43280 Series
Peltier Module 12.7W @ 25°C 3 A 80°C
Documents
Technical documentation and resources
