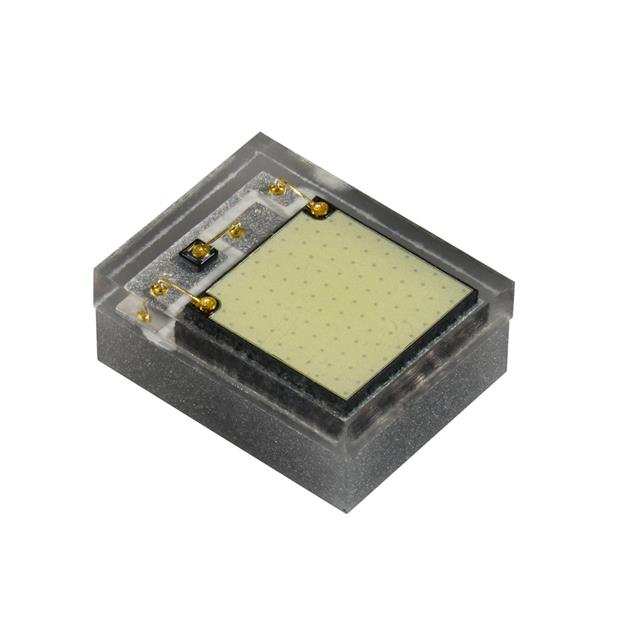

XEGACY-H0-0000-000-000000S7001

Active

Cree LED

XLAMP XEG CYAN LED

Deep-Dive with AI

Search across all available documentation for this part.

XEGACY-H0-0000-000-000000S7001

Active

Cree LED

XLAMP XEG CYAN LED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XEGACY-H0-0000-000-000000S7001

Color	Cyan
Current - Max [Max]	3 A
Current - Test	1 A
Height - Seated (Max) [Max] [z]	1.13 mm
Height - Seated (Max) [Max] [z]	0.044 "
Luminous Flux @ Current/Temperature	188 lm
Mounting Type	Surface Mount
Package / Case	3-SMD, No Lead
Size / Dimension [x]	2.05 mm
Size / Dimension [x]	0.081 in
Size / Dimension [y]	1.6 mm
Size / Dimension [y]	0.063 in
Supplier Device Package	3-SMD
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	3.05 V
Wavelength	500 nm

XEGACY Series

Part	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Current - Max [Max]	Current - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Supplier Device Package	Wavelength [Min]	Wavelength [Max]	Luminous Flux @ Current/Temperature	Wavelength	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Cree LED XEGACY-H0-0000-000-000000S4001	56 lm/W	1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	2-SMD No Lead	3 A	1 A	125 °	3 V	Cyan	2-SMD	490 nm	510 nm	168 lm
Cree LED XEGACY-H2-0000-000-000000S4002	56 lm/W	1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	2-SMD No Lead	3 A	1 A	125 °	3 V	Cyan	2-SMD			168 lm	498 nm
Cree LED XEGACY-H0-0000-000-000000T1002	63 lm/W	1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	2-SMD No Lead	3 A	1 A	125 °	3 V	Cyan	2-SMD			190 lm	498 nm
Cree LED XEGACY-H0-0000-000-000000S5002	59 lm/W	1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	2-SMD No Lead	3 A	1 A	125 °	3 V	Cyan	2-SMD			176 lm	498 nm
Cree LED XEGACY-H2-0000-000-000000T2001	70 lm/W	1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	2-SMD No Lead	3 A	1 A	125 °	3 V	Cyan	2-SMD	490 nm	510 nm	210 lm		200 lm	220 lm
Cree LED XEGACY-H2-0000-000-000000T1003	63 lm/W	1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	2-SMD No Lead	3 A	1 A	125 °	3 V	Cyan	2-SMD			190 lm	503 nm
Cree LED XEGACY-H0-0000-000-000000S7001		1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	3-SMD No Lead	3 A	1 A	140 °	3.05 V	Cyan	3-SMD			188 lm	500 nm
Cree LED XEGACY-H0-0000-000-000000S8001		1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	3-SMD No Lead	3 A	1 A	140 °	3.05 V	Cyan	3-SMD			196 lm	500 nm
Cree LED XEGACY-H0-0000-000-000000S4002	56 lm/W	1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	2-SMD No Lead	3 A	1 A	125 °	3 V	Cyan	2-SMD			168 lm	498 nm
Cree LED XEGACY-H2-0000-000-000000S3003	53 lm/W	1.13 mm	0.044 "	2.05 mm	1.6 mm	0.081 in	0.063 in	Surface Mount	2-SMD No Lead	3 A	1 A	125 °	3 V	Cyan	2-SMD			160 lm	503 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.88

Description

General part information

XEGACY Series

LED Lighting Color XLamp® XE-G Cyan 500nm 3-SMD, No Lead
