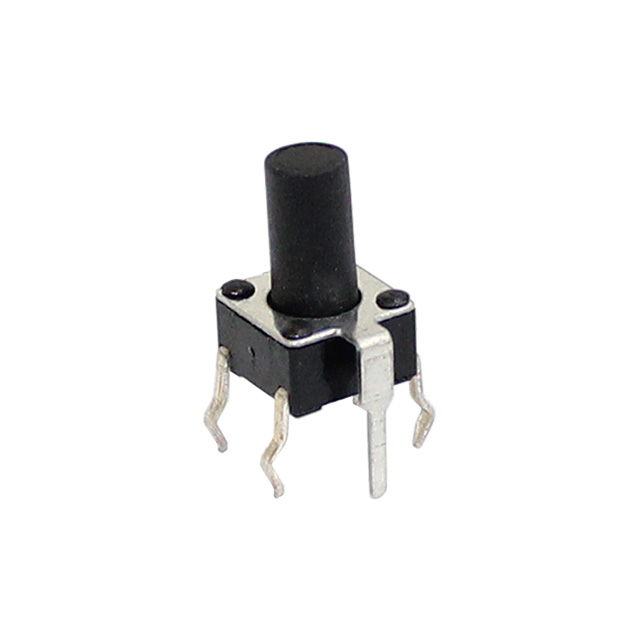

CT1102P9.5F260

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CT1102P9.5F260

Actuator Height off PCB, Vertical	9.5 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Operating Force	Contact Rating @ Voltage	Outline [y]	Outline [x]	Switch Travel	Actuator Height off PCB, Vertical	Switch Function	Illumination	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Actuator Orientation	Mounting Type	Termination Style
CIT Relay and Switch CT1102P9.5F260	260 gf	0.05 A 50 VDC	6 mm	6 mm	0.25 mm	9.5 mm	Off-Mom	Non-Illuminated	SPST-NO	Plunger for Cap	85 °C	-40 °C	Nylon 6/6 Polyamide (PA66)	Top Actuated	Through Hole	PC Pin
CIT Relay and Switch CT1102P9.5F160		0.05 A 50 VDC	6 mm	6 mm	0.25 mm	9.5 mm	Off-Mom	Non-Illuminated	SPST-NO	Plunger for Cap	85 °C	-40 °C	Nylon 6/6 Polyamide (PA66)	Top Actuated	Through Hole	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
