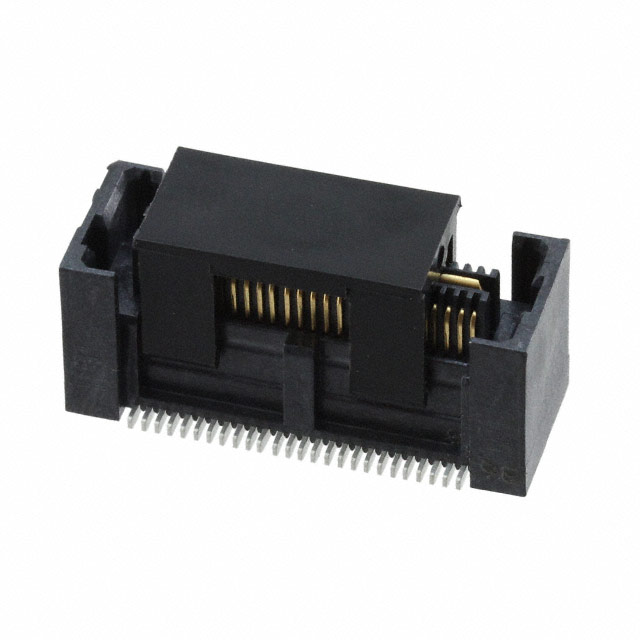

ASP-129646-01

Active

Samtec Inc.

CONN RCPT 52POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 52POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ASP-129646-01

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board	9.04 mm
Height Above Board	0.356 in
Mated Stacking Heights	15.24 mm
Mounting Type	Surface Mount
Number of Positions	52
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Mounting Type	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Height Above Board	Height Above Board	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
Samtec Inc. ASP-129646-01	Surface Mount	Gold	52	0.64 mm	0.025 in	Center Strip Contacts Receptacle	9.04 mm	0.356 in	2	0.76 Ám	30 Áin	15.24 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

52 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
