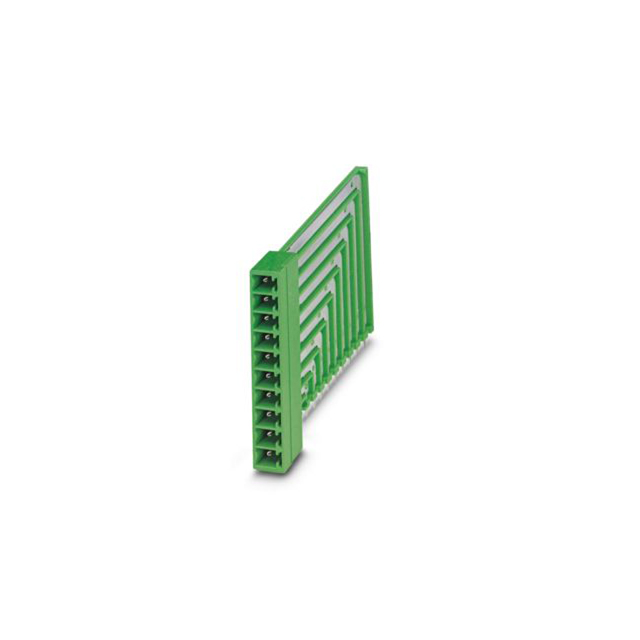

1861714

Active

Phoenix Contact

BARRIER STRIP TERMINAL BLOCK, 8A, 1 ROW(S), 1 DECK(S), ROHS COMPLIANT

Search across all available documentation for this part.

Active

Phoenix Contact

BARRIER STRIP TERMINAL BLOCK, 8A, 1 ROW(S), 1 DECK(S), ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	1861714

Color	Green
Contact Mating Finish	Tin
Current - IEC	8 A
Current - UL	8 A
Header Orientation	Right Angle, Vertical
Header Orientation	90 °
Insulation Height	1.405 in
Insulation Height	35.68 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	9
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	9
Termination Style	Solder
Type	Header, Male Pins, Shrouded (2 Side)
Voltage - IEC	200 V
Voltage - UL	300 V

Pluggable Terminal Blocks 10 Pos 3.81mm pitch Through Hole Header

Part	Current - UL	Mounting Type	Number of Positions	Voltage - UL	Current - IEC	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Voltage - IEC	Positions Per Level	Contact Mating Finish	Header Orientation	Header Orientation	Material Flammability Rating	Number of Levels	Color	Type	Termination Style
Phoenix Contact 1861714	8 A	Through Hole	9	300 V	8 A	1.405 in	35.68 mm	0.15 in	3.81 mm	200 V	9	Tin	Right Angle Vertical	90 °	UL94 V-0	1	Green	Header Male Pins Shrouded (2 Side)	Solder
Phoenix Contact 1861808	8 A	Through Hole	10	300 V	8 A	1.555 in	39.49 mm	0.15 in	3.81 mm	200 V	10	Tin	Right Angle Vertical	90 °	UL94 V-0	1	Green	Header Male Pins Shrouded (2 Side)	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.87
Sager	N/A	50	$ 12.79
		150	$ 12.34

General part information

Pluggable Terminal Blocks 10 Pos 3.81mm pitch Through Hole Header
