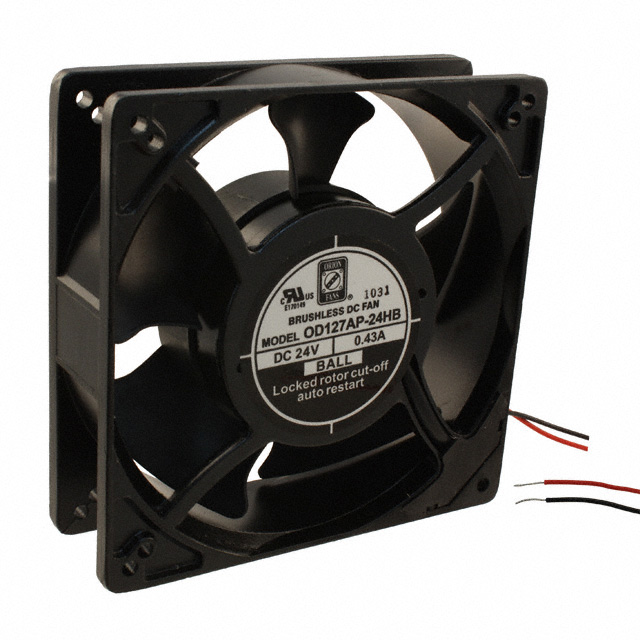

OD127AP-24HB

Active

Orion Fans

FAN AXIAL 127X38.5MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD127AP-24HB

Active

Orion Fans

FAN AXIAL 127X38.5MM 24VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD127AP-24HB

Air Flow	3.92 mł/min
Air Flow	140 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	430 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Aluminum
Noise	46 dB(A)
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
RPM	3000 RPM
Size / Dimension [x]	127 mm
Size / Dimension [y]	127 mm
Static Pressure	102.1 Pa
Static Pressure	0.41 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	12 VDC
Width [y]	38.5 mm

OD127 Series

Part	Static Pressure	Static Pressure	Width [y]	Fan Type	Material - Frame	Noise	Lifetime @ Temp.	Approval Agency	Air Flow	Air Flow	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	RPM	Termination	Bearing Type	Features	Voltage - Rated	Material - Blade	Voltage - Rated [custom]
Orion Fans OD127-12MB01A	87.2 Pa	0.35 in H2O	38.5 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	53 dB	60000 Hrs	cURus TUV	4.51 mł/min	161 CFM	780 mA	-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	8 VDC	14 V	2950 RPM	3 Wire Leads	Ball	Speed Sensor (Tach)	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD127-12LB01A			38.5 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		60000 Hrs	cURus TUV				-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	8 VDC	14 V		3 Wire Leads	Ball	Speed Sensor (Tach)	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD127-24HB5	114.6 Pa	0.46 in H2O	38.5 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	56 dB	60000 Hrs	cURus TUV	4.51 mł/min	161 CFM	610 mA	-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	11 VDC	28 VDC	3500 RPM	3 Wire Leads	Ball	PWM Control	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD127-48HB10A	114.6 Pa	0.46 in H2O	38.5 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	56 dB	60000 Hrs	cURus TUV	4.51 mł/min	161 CFM	0.34 A	-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	22 VDC	55 VDC	3500 RPM	4 Wire Leads	Ball	PWM Control Speed Sensor (Tach)		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC
Orion Fans OD127-48MB5	87.2 Pa	0.35 in H2O	38.5 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	53 dB	60000 Hrs	cURus TUV	4.51 mł/min	161 CFM	0.23 A	-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	22 VDC	55 VDC	2950 RPM	3 Wire Leads	Ball	PWM Control		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC
Orion Fans OD127-12MB10A	87.2 Pa	0.35 in H2O	38.5 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	53 dB	60000 Hrs	cURus TUV	4.51 mł/min	161 CFM	780 mA	-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	8 VDC	14 V	2950 RPM	4 Wire Leads	Ball	PWM Control Speed Sensor (Tach)	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD127-12HB5	114.6 Pa	0.46 in H2O	38.5 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	56 dB	60000 Hrs	cURus TUV	4.51 mł/min	161 CFM	1.2 A	-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	8 VDC	14 V	3500 RPM	3 Wire Leads	Ball	PWM Control	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD127AP-24HB	102.1 Pa	0.41 in H2O	38.5 mm	Tubeaxial	Aluminum	46 dB(A)	60000 Hrs	cURus TUV	3.92 mł/min	140 CFM	430 mA	-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	12 VDC	27.6 VDC	3000 RPM	2 Wire Leads	Ball		24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD127-48HHB	137 Pa	0.55 in H2O	38.5 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	62 dB(A)	60000 Hrs	cURus TUV	5.4 mł/min	193 CFM	0.55 A	-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	22 VDC	55 VDC	4100 RPM	2 Wire Leads	Ball			Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC
Orion Fans OD127-12LB5			38.5 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		60000 Hrs	cURus TUV				-20 C	-20 °C	75 ░C	75 °C	127 mm	127 mm	8 VDC	14 V		3 Wire Leads	Ball	PWM Control	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 43.60
		10	$ 39.81
		40	$ 38.30
		80	$ 35.78
		120	$ 33.01
		280	$ 32.51

Description

General part information

OD127 Series

Fan Tubeaxial 24VDC Square - 127mm L x 127mm H Ball 140.0 CFM (3.92m³/min) 2 Wire Leads
