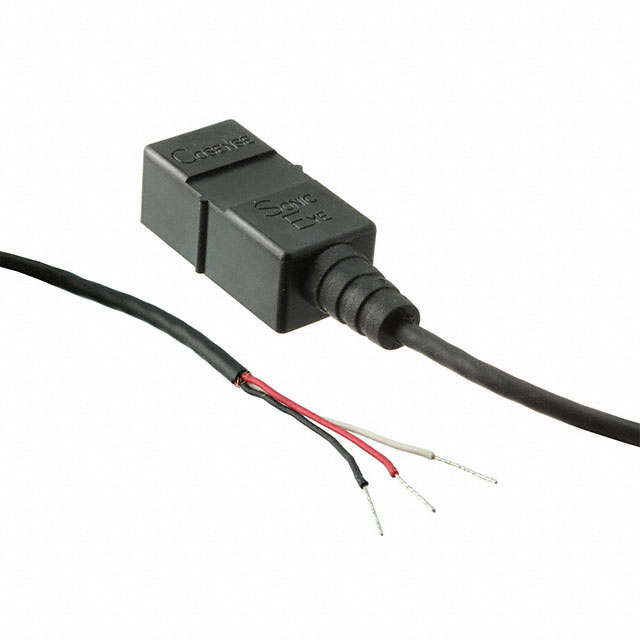

SL630-C01
ActiveTE Connectivity Measurement Specialties
SENSOR LEVEL PUSH-PULL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SL630-C01 |
|---|---|
| Material - Housing & Prism | Polyetherimide (PEI) |
| Mounting Type | Flange Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Configuration | High-Dry |
| Output Type | Push-Pull |
| Type | Liquid |
| Voltage Rating [Max] | 24 V |
| Voltage Rating [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 361.15 | |
| 10 | $ 331.05 | |||
Description
General part information
SL6 Series
Liquid Level Sensor Push-Pull High-Dry Output Flange Mount
