2710-1511-000

Active

Radiall USA, Inc.

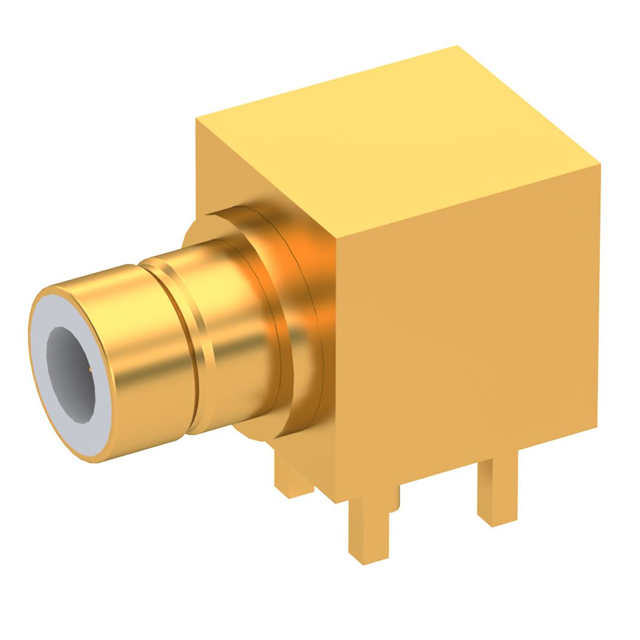

75 OHM / RIGHT ANGLE JACK MALE G

Search across all available documentation for this part.

Active

Radiall USA, Inc.

75 OHM / RIGHT ANGLE JACK MALE G

Technical Specifications

Parameters and characteristics for this part

Specification	2710-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	2 GHz
Housing Color	Gold
Impedance	75 Ohms
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	165 V

Part	Number of Ports	Shield Termination	Frequency - Max [Max]	Connector Type	Center Contact Plating	Voltage Rating	Body Material	Mating Cycles	Body Finish	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Mounting Type	Housing Color	Dielectric Material	Contact Termination	Fastening Type	Center Contact Material
Radiall USA, Inc. 2710-1511-000	1	Solder	2 GHz	Jack Male Pin	Gold	165 V	Brass	500	Gold	75 Ohms	-65 ░C	165 °C	0.6 dB	Through Hole Right Angle	Gold	Polytetrafluoroethylene (PTFE)	Solder	Snap-On	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 46.61

General part information

Connector Jack, Male Pin 75 Ohms Through Hole, Right Angle Solder
