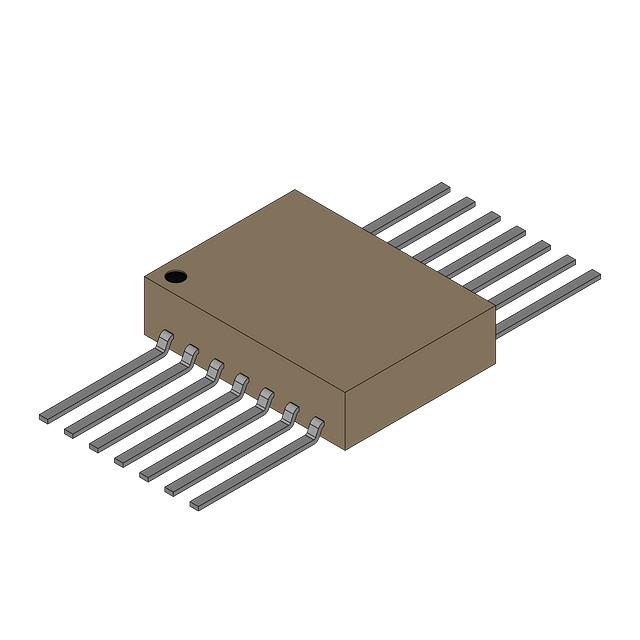

CD4000AK

Active

Harris Corporation

IC GATE NOR 2CH 3-INP 14CFP

Search across all available documentation for this part.

Active

Harris Corporation

IC GATE NOR 2CH 3-INP 14CFP

Technical Specifications

Parameters and characteristics for this part

Specification	CD4000AK

Logic Type	NOR Gate
Max Propagation Delay @ V, Max CL	65 ns
Mounting Type	Surface Mount
Number of Circuits	2
Number of Inputs	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	14-CFlatpack
Voltage - Supply [Max]	12 V
Voltage - Supply [Min]	3 V

Part	Mounting Type	Max Propagation Delay @ V, Max CL	Package / Case	Number of Circuits	Number of Inputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Logic Type	Supplier Device Package	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Current - Quiescent (Max) [Max]	Input Logic Level - High [Max]	Input Logic Level - High [Min]
Harris Corporation CD4000AK	Surface Mount	65 ns	14-CFlatpack	2	3	-55 °C	125 °C	12 V	3 V	NOR Gate
Harris Corporation CD4000AD/3	Through Hole	65 ns	14-CDIP	2	3	-55 °C	125 °C	12 V	3 V	NOR Gate	14-CDIP
Harris Corporation CD4000AF/3	Through Hole	65 ns	14-CDIP	2	3	-55 °C	125 °C	12 V	3 V	NOR Gate	14-CDIP
Harris Corporation CD4000BK3	Surface Mount	250 ns	14-CFlatpack	2	3	-55 °C	125 °C	18 V	3 V	NOR Gate		1.5 V	4 V	3.4 mA	3.4 mA	5 µA	11 V	3.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	15	$ 20.99

General part information

NOR Gate IC 2 Channel 14-CFP

Technical documentation and resources

No documents available
