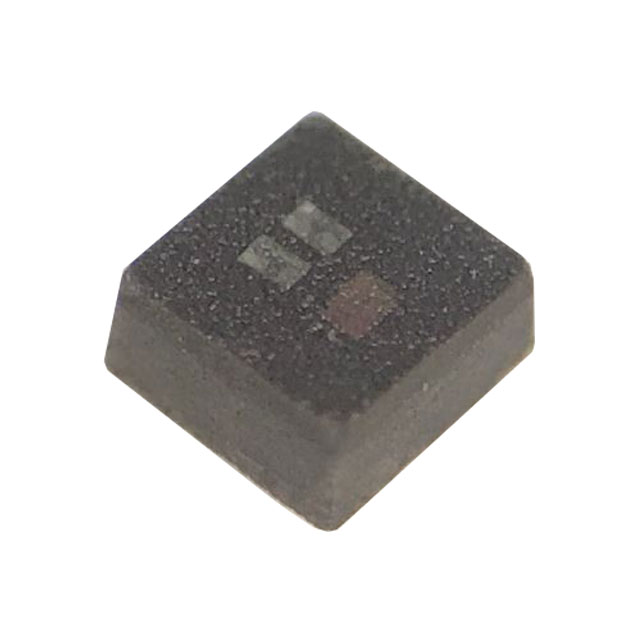

UHD1110-FKA-CL1A13R3Q1BBQFMF3
Cree LED
MULTICOLOR LED RED/GREEN/BLUE 624NM/536NM/472NM 4-PIN SURFACE MOUNT T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UHD1110-FKA-CL1A13R3Q1BBQFMF3
Cree LED
MULTICOLOR LED RED/GREEN/BLUE 624NM/536NM/472NM 4-PIN SURFACE MOUNT T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UHD1110-FKA-CL1A13R3Q1BBQFMF3 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Size | 1 mm |
| Lens Style | Square with Flat Top |
| Millicandela Rating [custom] | 106 mcd |
| Millicandela Rating [custom] | 24 mcd |
| Millicandela Rating [custom] | 78 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0404 |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | 0404 |
| Voltage - Forward (Vf) (Typ) | 2.9 V, 1.9 V, 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
| Tape & Reel (TR) | 10000 | $ 0.07 | ||
| 50000 | $ 0.06 | |||
Description
General part information
UHD1110 Series
Red, Green, Blue (RGB) LED Indication - Discrete 1.9V Red, 2.9V Green, 2.9V Blue 0404 (1010 Metric)
