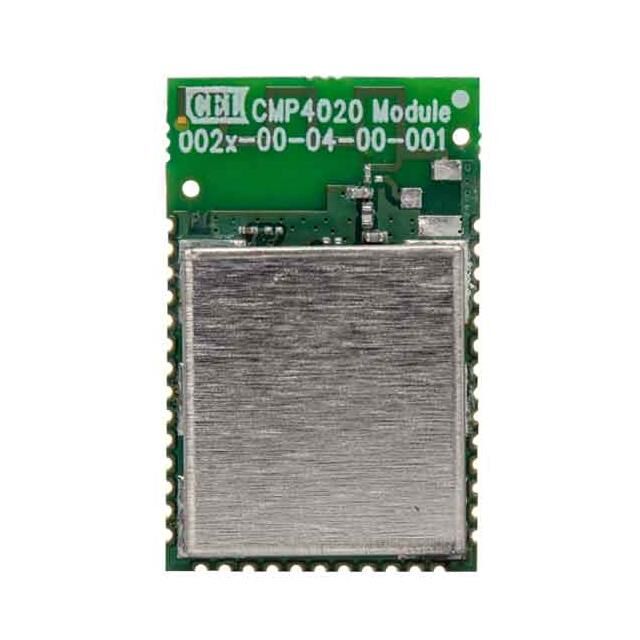

CMP4020-2-B
ActiveCEL
RF TXRX MOD BT WIFI TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMP4020-2-B
ActiveCEL
RF TXRX MOD BT WIFI TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMP4020-2-B |
|---|---|
| Antenna Type | Integrated, Trace |
| Frequency | 5 GHz, 2.4 GHz |
| Memory Size | 512 kB, 512 kB, 8 MB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 39-SMD Module |
| Power - Output | 18 dBm |
| Protocol | Bluetooth v5.0, 802.11a/b/g/n |
| RF Family/Standard | WiFi, Bluetooth |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.23 | |
| 10 | $ 25.47 | |||
| 25 | $ 23.50 | |||
| 100 | $ 21.12 | |||
| 250 | $ 19.88 | |||
| 500 | $ 19.08 | |||
Description
General part information
CMP4020 Series
Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v5.0 Transceiver Module 2.4GHz, 5GHz Integrated, Trace Surface Mount
