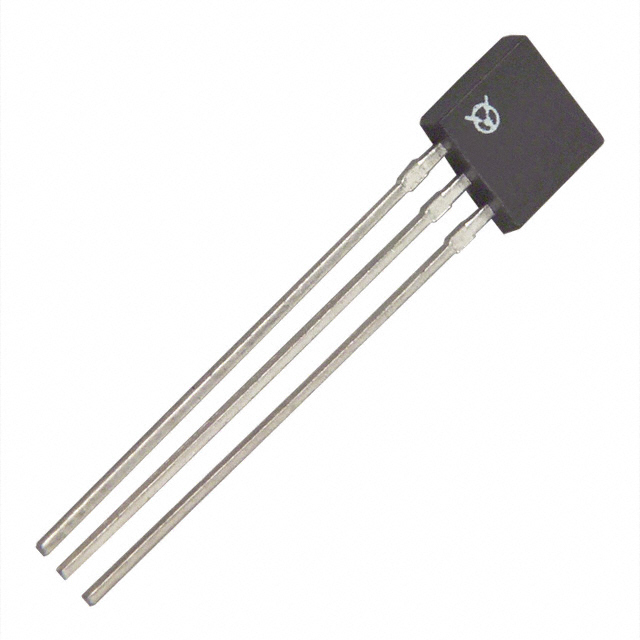

OHN3020U
ActiveTT Electronics/Optek Technology
MAGNETIC SWITCH UNIPOLAR TO92-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OHN3020U
ActiveTT Electronics/Optek Technology
MAGNETIC SWITCH UNIPOLAR TO92-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OHN3020U |
|---|---|
| Current - Output (Max) [Max] | 25 mA |
| Current - Supply (Max) [Max] | 7 mA |
| Function | Unipolar Switch |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -20 °C |
| Output Type | Open Collector |
| Package / Case | 3-SSIP |
| Polarization | South Pole |
| Sensing Range | 35 mT, 5 mT |
| Supplier Device Package | TO-92-3 |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.23 | |
| 100 | $ 4.79 | |||
| 250 | $ 4.64 | |||
| 500 | $ 4.51 | |||
| 1000 | $ 4.48 | |||
Description
General part information
OHN3020 Series
Digital Switch Unipolar Switch Open Collector Hall Effect TO-92-3
