H9001-01
ActiveHarwin Inc.

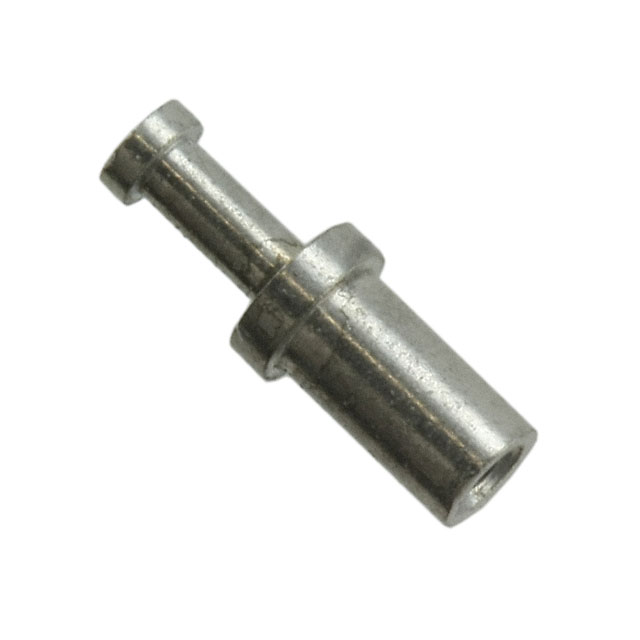

TERM TURRET SINGLE L=2.39MM TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H9001-01
ActiveHarwin Inc.
TERM TURRET SINGLE L=2.39MM TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H9001-01 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Contact Finish | Tin |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.02 mm |
| Diameter - Turret Head [diameter] | 0.04 in |
| Flange Diameter [diameter] | 0.062 in |
| Flange Diameter [diameter] | 1.57 mm |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.094 in |
| Length - Above Board [x] | 2.39 mm |
| Length - Below Flange [Max] [x] | 0.084 in |
| Length - Below Flange [Max] [x] | 2.13 mm |
| Length - Below Flange [Min] [x] | 2.08 mm |
| Length - Below Flange [Min] [x] | 0.082 in |
| Length - Overall [x] | 0.176 in |
| Length - Overall [x] | 4.47 mm |
| Mounting Hole Diameter [Max] | 1.32 mm |
| Mounting Hole Diameter [Max] | 0.052 " |
| Mounting Hole Diameter [Min] | 1.24 mm |
| Mounting Hole Diameter [Min] | 0.049 " |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side ID [diameter] | 0.028 in |
| Staking Side ID [diameter] | 0.71 mm |
| Terminal Type | Single End |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| 3000 | $ 0.17 | |||
Description
General part information
H9001 Series
Terminal Turret Connector Single End 0.094" (2.39mm) Tin
