PT05A-14-5S

Active

Amphenol Industrial Operations

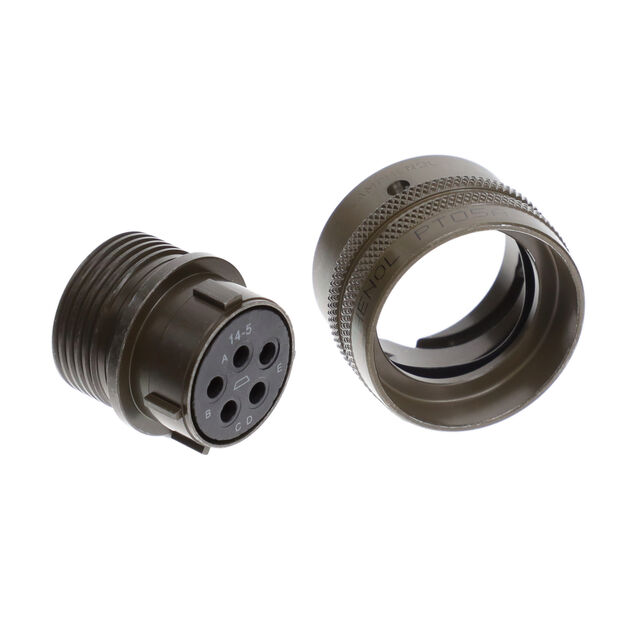

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

PT05A-14-5S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT05A-14-5S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	14-5
Shielding	Unshielded

PT05A Series

Part	Mounting Type	Contact Finish - Mating	Qualification	Features	Shell Finish	Connector Type	Shielding	Fastening Type	Primary Material	Shell Size - Insert	Color	Applications	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Insert Material	Orientation	Shell Material	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Industrial Operations PT05A-14-5S	Free Hanging (In-Line)	Gold	MIL-DTL-26482 Series I	Coupling Nut	Olive Drab Chromate over Cadmium	Female Sockets Plug	Unshielded	Bayonet Lock	Metal	14-5	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	-55 °C	125 °C	Aluminum Olive Drab Cadmium	Neoprene	N	Aluminum
Amphenol Industrial Operations PT05A14-18P-005	Free Hanging (In-Line)	Gold	MIL-DTL-26482 Series I	Coupling Nut	Anodic Coating (Alumilite)	Male Pins Plug	Unshielded	Bayonet Lock	Metal			Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	-55 °C	125 °C	Aluminum Anodic Coating (Alumilite)	Neoprene	N	Aluminum	18	14	18
Amphenol Industrial Operations PT05A8-4P-025	Free Hanging (In-Line)	Gold	MIL-DTL-26482 Series I	Coupling Nut	Black Zinc Cobalt	Male Pins Plug	Unshielded	Bayonet Lock	Metal	8-4	Black	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	-55 °C	125 °C	Aluminum Black Zinc Cobalt	Neoprene	N	Aluminum	4
Amphenol Industrial Operations PT05A14-18SW-027	Free Hanging (In-Line)	Gold	MIL-DTL-26482 Series I	Coupling Nut	Black Zinc Cobalt	Female Sockets Plug	Unshielded	Bayonet Lock	Metal		Black	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	-55 °C	125 °C	Aluminum Black Zinc Cobalt	Neoprene	W	Aluminum	18	14	18
Amphenol Industrial Operations PT05A12-4P-027	Free Hanging (In-Line)	Gold	MIL-DTL-26482 Series I	Coupling Nut	Black Zinc Cobalt	Male Pins Plug	Unshielded	Bayonet Lock	Metal	12-4	Black	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	-55 °C	125 °C	Aluminum Black Zinc Cobalt	Neoprene	N	Aluminum	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.92
		10	$ 21.18
		25	$ 19.86
		50	$ 18.91
		100	$ 18.01
		250	$ 16.88
		500	$ 16.07

Description

General part information

PT05A Series

5 Position Circular Connector Plug, Female Sockets Solder Cup
