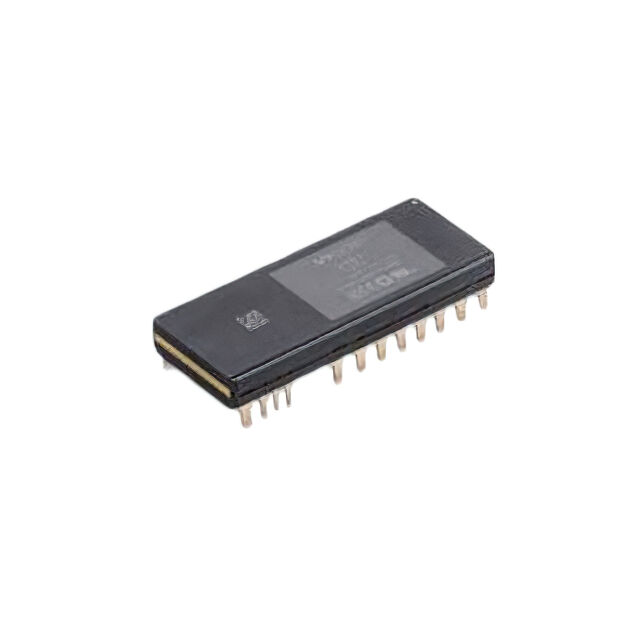

BCM6123TD1E2663T00

Active

Vicor Corporation

DC DC CONVERTER 24V 1600W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BCM6123TD1E2663T00

Active

Vicor Corporation

DC DC CONVERTER 24V 1600W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BCM6123TD1E2663T00

Applications	ITE (Commercial)
Approval Agency	cURus, cTUVus, CE
Current - Output (Max) [Max]	62.5 A
Efficiency	97.4 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module
Power (Watts)	1600 W
Size / Dimension [x]	61 mm
Size / Dimension [x]	2.4 in
Size / Dimension [y]	0.99 in
Size / Dimension [y]	25.1 mm
Size / Dimension [z]	0.28 "
Size / Dimension [z]	7.2 mm
Type	Bus Converter Module
Voltage - Input (Max) [Max]	410 V
Voltage - Input (Min) [Min]	260 V
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

BCM6123 Series

Part	Mounting Type	Package / Case	Voltage - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Type	Applications	Efficiency	Power (Watts)	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Standard Number	Features	Board Type	Main Purpose	Utilized IC / Part	Voltage - Output	Frequency - Switching	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Outputs and Type	Outputs and Type	Supplied Contents	Power - Output
Vicor Corporation BCM6123TD1E2663T00	Through Hole	24-DIP Module	24 V	1	125 °C	-40 °C	410 V	260 V	62.5 A	Bus Converter Module	ITE (Commercial)	97.4 %	1600 W	CE cTUVus cURus	61 mm	2.4 in	0.28 "	7.2 mm	0.99 in	25.1 mm	4.242 kV
Vicor Corporation BCM6123TD0G5030T00	Through Hole	9-DIP Module	33.8 V	1	125 °C	-40 °C	400 V	200 V	30 A	Bus Converter Module	ITE (Commercial)	97.9 %		CE cTUVus cURus	63.3 mm	2.49 "	0.28 "	7.2 mm	0.9 "	22.8 mm	4.242 kV	60950-1	Adjustable Output PMBus™ Remote Sense
Vicor Corporation BCM6123TD1E13A2T01
Vicor Corporation BCM6123ED1E1368T0R																								Fully Populated	DC/DC Step Down	BCM6123xD1E1368yzz	13 V	1.03 MHz	Buck	410 V	260 VDC	68 A	Isolated	1	Board(s)
Vicor Corporation BCM6123E60E10A5T00																								Fully Populated	DC/DC Step Down	BCM6123x60E10A5yzz	9 V	900 kHz	Buck	60 V	36 V	150 A	Isolated	1	Board(s)
Vicor Corporation BCM6123TD1E5117T00	Through Hole	9-DIP Module	47.5 V	1	125 °C	-40 °C	410 V	260 V	16.9 A	Isolated Module	ITE (Commercial)	97.7 %									4.242 kV		OCP OTP OVP SCP UVLO
Vicor Corporation BCM6123ED1E1368T01																								Fully Populated	DC/DC Step Down	BCM6123xD1E1368yzz	13 V	1.03 MHz	Buck	410 V	260 VDC	68 A	Isolated	1	Board(s)
Vicor Corporation BCM6123TD1E13A3T0R	Through Hole	24-DIP Module	12 V	1	125 °C	-40 °C	410 V	260 V	125 A	Bus Converter Module	ITE (Commercial)	97.4 %	1600 W		61 mm	2.4 in	0.28 "	7.2 mm	0.99 in	25.1 mm	4.242 kV		OCP OTP OVP SCP UVLO
Vicor Corporation BCM6123TD1E5117T01	Through Hole	9-DIP Module	47.5 V	1	125 °C	-40 °C	410 V	260 V	16.9 A	Isolated Module	ITE (Commercial)	97.7 %									4.242 kV		OCP OTP OVP SCP UVLO
Vicor Corporation BCM6123ED1E2663T00																								Fully Populated	DC/DC Step Down	BCM6123xD1E2663yzz	24 V	1.05 MHz	Buck	410 V	260 VDC	62.5 A	Isolated	1	Board(s)	1500 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 332.39
		10	$ 264.02
		25	$ 240.91

Description

General part information

BCM6123 Series

Bus Converter Module DC DC Converter 1 Output 24V 62.5A 260V - 410V Input
